Lumens

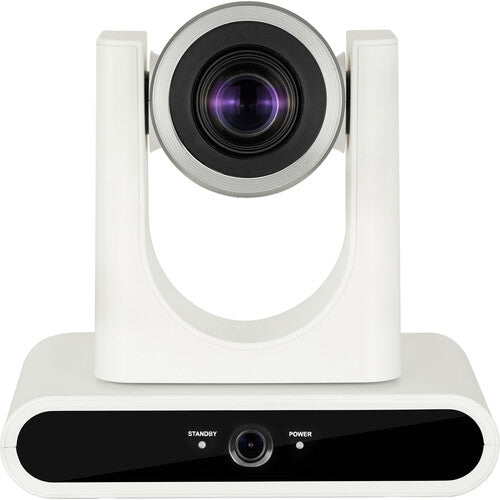

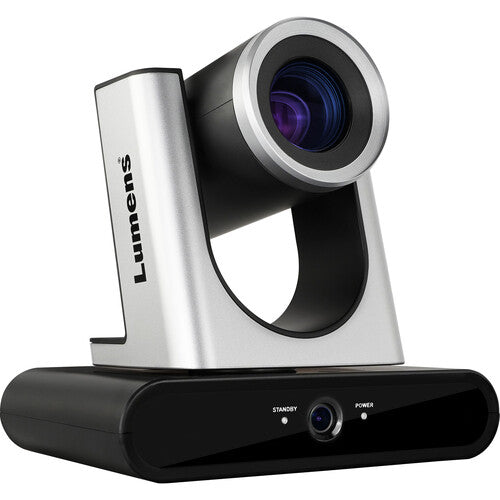

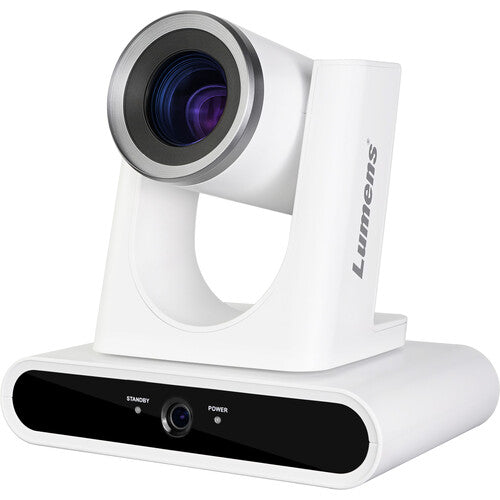

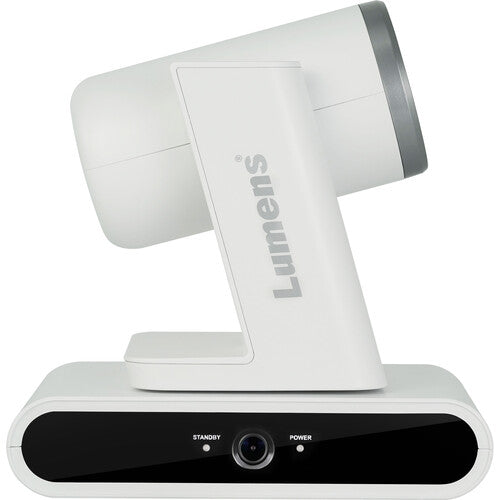

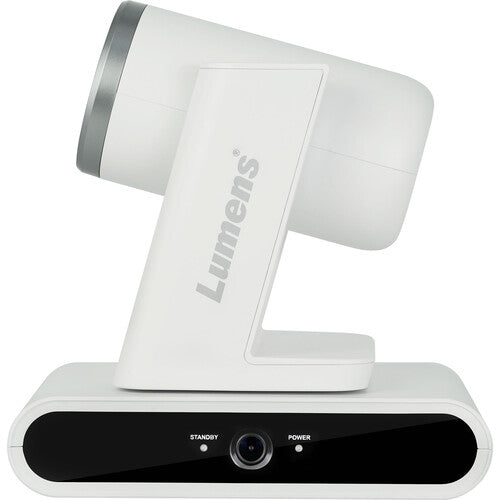

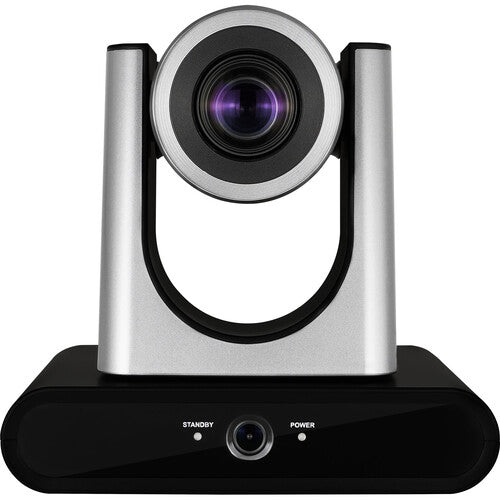

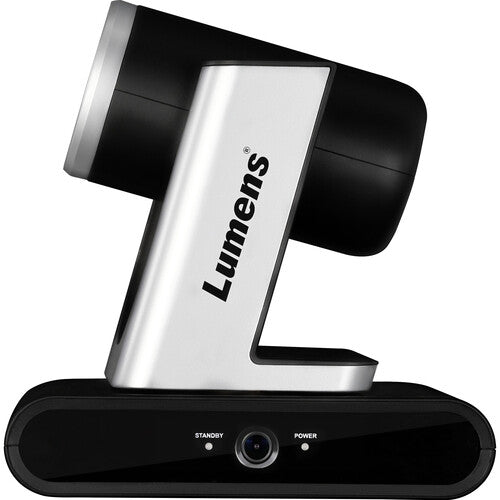

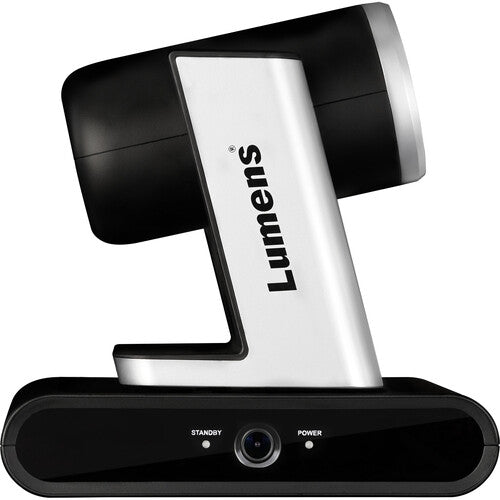

VC-TR40 Dual Optics Auto-tracking PTZ Camera with IP/SDI/HDMI and USB Interfaces - Barco Clickshare Certified

Color Black White

Key Features

Dual 1/2.8" 2MP CMOS Sensors
Panoramic and PTZ Camera
1080p via HDMI, 3G-SDI, USB & IP Output
AI Auto-Tracking, Face Recognition
20x Optical Zoom, 12x Digital Zoom
IP Interface with PoE and Control
Wide Angle of View. 3.5mm Audio Input
RS-232 Serial Control

Lumens VC-TR40 Overview

The VC-TR40 Dual-Lens AI Auto-Tracking Full HD Camera from Lumens boasts both PTZ and panoramic camera functionality in a single camera for conference space or lecture hall applications. AI-tracking and framing modes with facial recognition technology make automatic adjustments to better bridge the gap between in-person and remote participants. Simultaneously view the entire view with the 720p panoramic lens with 111° horizontal FOV and the individual presenter with the 1080p PTZ lens with 58.7° horizontal FOV.

The camera can output up to 1080p video via HDMI, 3G-SDI, USB-B, and IP ports for flexible connectivity with your preexisting configuration. Both lenses feature 1/2.8" 2MP CMOS sensors, 20x optical zoom, and 12x digital zoom. A 3.5mm audio line input can add a microphone to the camera's interface. Various forms of control make remote adjustment intuitive and efficient. Power can be delivered via the DC input port or PoE via the Ethernet port.

AI-Powered Tracking Modes

Stage Tracking Mode: the camera pans left and right to follow a presenter within a defined area
Everywhere Tracking Mode: the camera continuously tracks the presenter's movement side-to-side and forwards and backwards
Partition Tracking Mode: create a pre-defined partition area that the camera can switch to when the presenter enters inside
Gesture Tracking Mode: raising your hands causes the camera to automatically track you, manually change the tracked subject by selecting the individual via IP interface

Framing Modes

Auto-Framing Mode: the camera will automatically adjust to capture all participants
Partition-Framing Mode: the camera will adjust to a preset position when the presenter walks in to frame and default to auto-framing when they exit

Flexible Mounting and Control

Position upright or suspend from the ceiling thanks to its inverted capabilities which reorient the image and flip the controls
Control over the camera's movements and modes can be achieved via the serial RS-232 connections
IP via Ethernet port follows VISCA, Pelco-D, and ONVIF protocols
Included remote control

Lumens VC-TR40Specs

Key Specs

Image Sensor	1/2.8"-Type CMOS
Sensor Resolution	Effective: 2 Megapixel
Shutter Speed	1/10000 to 1/25 Second
Optical Zoom Ratio	20x
Max Digital Zoom	12x
External Recording Modes	SDI/BNC / HDMI / USB 1920 x 1080p at 25/30.00/50/60.00 fps 1280 x 720 at 50/60.00 fps
Broadcast Output	NTSC/PAL
IP Streaming	H.264, RTMP, RTMPS, RTSP, SRT 1920 x 1080 at 60p (2.0 to 20.00 Mb/s) 1280 x 720 at 30p (2.0 to 20.00 Mb/s)
Supported Control Protocols	Pelco-D RS-232 VISCA
PoE Support	PoE 802.3af
Mounting	1x 1/4"-20 Female for Tripod

Imaging

Image Sensor	1/2.8"-Type CMOS
Sensor Resolution	Effective: 2 Megapixel
Built-In ND Filter	No
Focus Control	Autofocus Manual Focus

Exposure Control

Shutter Speed	1/10000 to 1/25 Second
Gain	0 to 30 dB
Signal-to-Noise Ratio	50 dB
Minimum Illumination	1 Lux
Flip / Mirror Support	Image Flip, Mirror (Vertical)
White Balance	Range: 1700 to 10,000K Presets: One Push, Indoors, Outdoors, Manual, ATW, Auto

Lens

Focal Length	4.9 to 94mm
Optical Zoom Ratio	20x
Max Digital Zoom	12x
Field of View	Horizontal: 58.7° Vertical: 33° Diagonal: 67.3°
Maximum Aperture	f/1.6 to 2.8
Minimum Focus Distance	19.7" / 50.0 cm

Video Capture

External Recording Modes	SDI/BNC / HDMI / USB 1920 x 1080p at 25/30.00/50/60.00 fps 1280 x 720 at 50/60.00 fps
Embedded Audio	HDMI/LAN (RJ45)/SDI/USB
Audio Recording	48 kHz AAC Audio
Broadcast Output	NTSC/PAL
IP Streaming	H.264, RTMP, RTMPS, RTSP, SRT 1920 x 1080 at 60p (2.0 to 20.00 Mb/s) 1280 x 720 at 30p (2.0 to 20.00 Mb/s)

Control

Presets	256
Move Speed	Pan: 0.2 to 120°/sec Tilt: 0.2 to 80°/sec
Movement Range	Pan: 340° (-170 to 170°) Tilt: 120° (-30 to 90°)
Supported Control Protocols	Pelco-D RS-232 VISCA

Interface

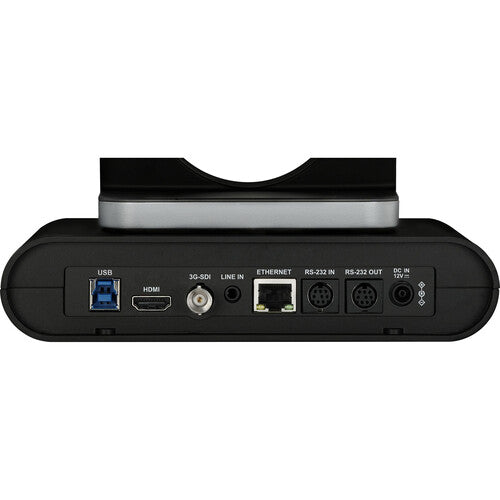

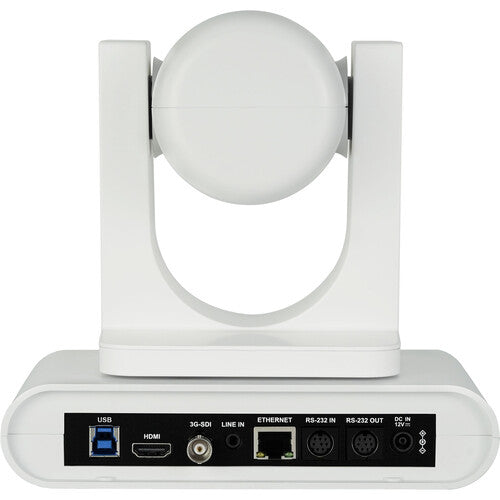

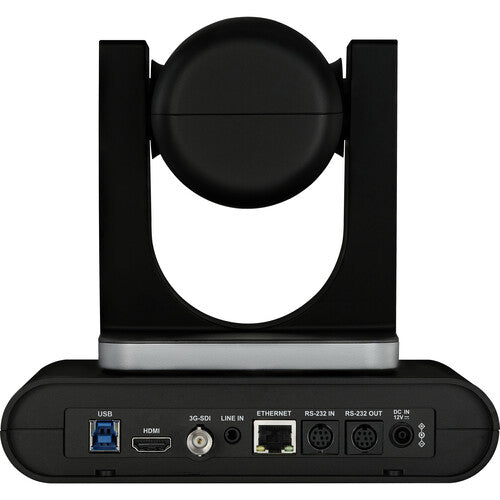

Video I/O	1x HDMI Output 1x BNC (3G-SDI) Output 1x USB-B 3.0 / 3.1/3.2 Gen 1 Input/Output 1x RJ45 Input/Output
Other I/O	1x DIN 8-Pin (RS-232) Input 1x DIN 8-Pin (RS-232) Output

Power

PoE Support	PoE 802.3af
Power I/O	1x Barrel (12VDC) Input
Power Consumption	PoE: 11 W Power Supply: 10 W

General

Mounting	1x 1/4"-20 Female for Tripod
Certifications	FCC Part 15 Class A, ICES-003, EN55032
Security Lock Support	Kensington Lock Slot
Dimensions (W x H x D)	7.5 x 7.3 x 5.4" / 190 x 185 x 138 mm
Weight	3.3 lb / 1.5 kg (Body Only)

Packaging Info

Package Weight	5.715 lb
Box Dimensions (LxWxH)	10.6 x 10.5 x 8.1"
