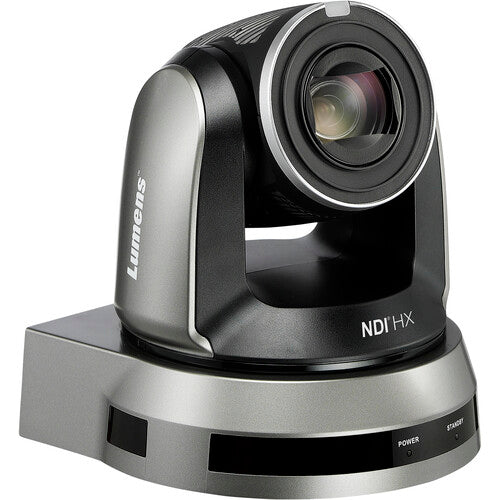

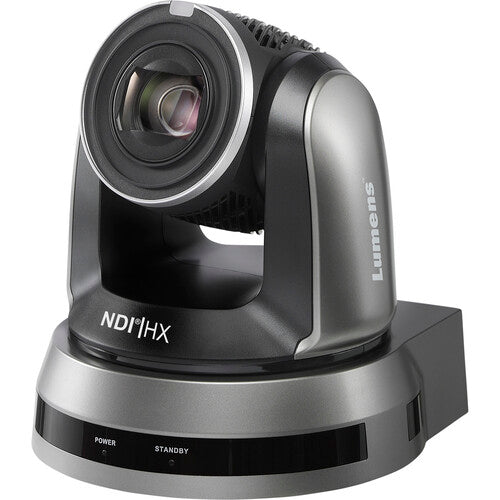

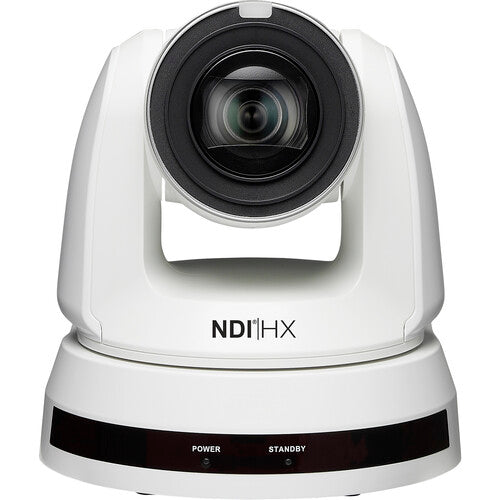

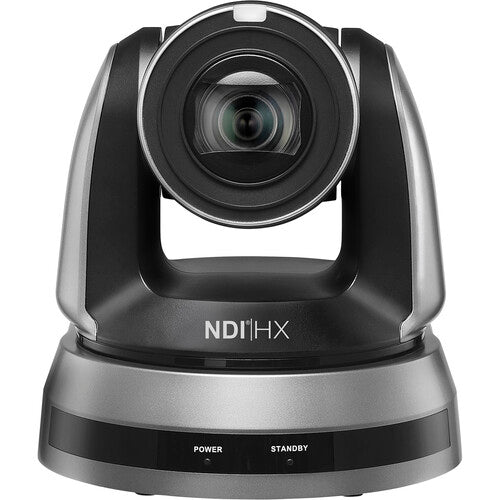

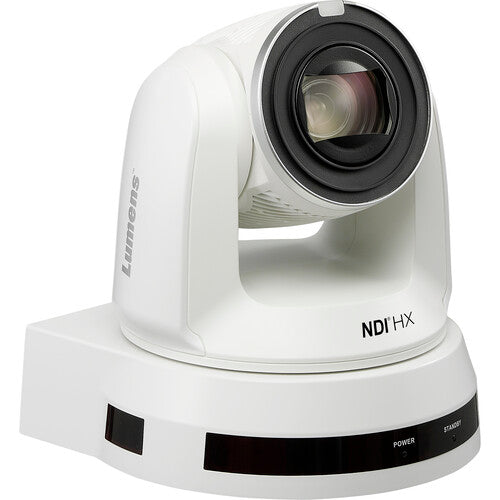

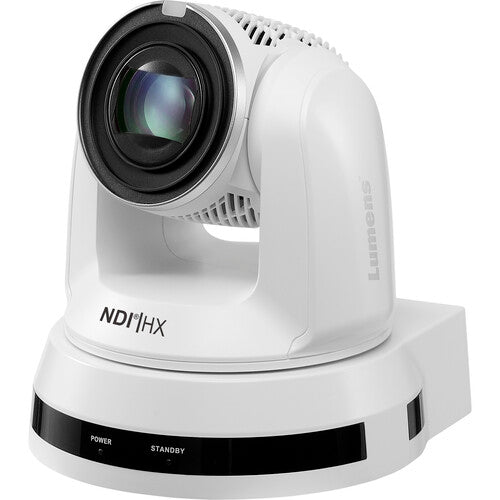

VC-A61PN 30x Optical Zoom, 1/2.5" CMOS 4k/30 HDMI, 3G SDI, NDI/IP PTZ

Add a PTZ camera to your NDI-enabled auditorium, lecture hall, e-sports event, meeting room, house of worship, or production environment with this VC-A61PN 4K NDI|HX PTZ Video Camera with 30x Optical Zoom from Lumens. This video conference camera features a 30x optical and 12x digital zoom lens so you can focus in on every inch of large rooms and areas, and it fits into professional video productions thanks to its tally light.

The camera's 1/2.5" 8.57MP CMOS sensor offers crisp clear video for output up to 4K30, and it can output to your recorder, switcher, or stream over IP using its multiple outputs. Its 3G-SDI, HDMI, and RJ45 outputs offer video resolutions up to 4K30 or 1080p60, and you can simultaneously output up to three video streams in multiple resolutions in common NDI|HX or H.264 formats. It incorporates a silent motor for high-speed, quiet pans, tilts, and zooms. Using its RS-232, RS-422, IR remote, and Ethernet LAN connectivity, you can program up to 256 position presets using serial or IP control.

You can power the camera via a PoE+ supported network to save cabling, or power it using the included power supply. The camera supports audio input to add a mic or line source to your production. The image flip feature allows you to mount the camera on a wall or ceiling using the included mounting hardware. An RS-422 adapter and IR remote control are also included.

Key Features

30x optical zoom, 12x digital zoom, 68° horizontal field of view.

UHD 4K30 and FHD 1080p Resolution

4K and 1080p resolution choices make the VC-A61PN more flexible for different shooting purposes. With its 4K UHD ultra-clear video quality, you can enjoy detailed, crystal-clear views, even in low light.

Supports Ethernet, HDMI, and 3G-SDI Outputs

The VC-A61PN comes equipped with HDMI, 3G-SDI, and NDI|HX Ethernet output interfaces that can ease your installation.

NDI|HX Technology

The VC-A61PN delivers high-quality video with ultra-low latency and connects directly to an NDI network.

Supports PoE+ (Power-over-Ethernet) using network cables to supply power.

Audio input supports AAC / G.711 encoding with 44.1 kHz / 48 kHz sampling frequency.

Free Lumens VMS software for controlling the cameras remotely from a local area network.

Live Stream Video with Support for H.264

With live streaming technology, the VC-A61PN provides simultaneous streams that tailored for your network environment.

Lumens VC-A61PSpecs

Key Specs

Image Sensor	1/2.5"-Type CMOS
Sensor Resolution	Effective: 8.57 Megapixel
Shutter Speed	1/10000 to 1 Second
Optical Zoom Ratio	30x
Max Digital Zoom	12x
External Recording Modes	SDI/BNC / HDMI / RJ45 3840 x 2160 at 25/29.97 fps SDI/BNC / HDMI / RJ45 1920 x 1080p at 25/29.97/50/59.94 fps 1280 x 720 at 50/59.94 fps
Broadcast Output	NTSC
IP Streaming	H.264, NDI\|HX 3840 x 2160 at 29.97p 640 x 360 at 29.97p
Supported Control Protocols	IP IR Pelco-D RS-232 VISCA
PoE Support	PoE+ 802.3at
Mounting	1x 1/4"-20 Female for Tripod 7x M3 Female for Ceiling

Imaging

Image Sensor	1/2.5"-Type CMOS
Sensor Resolution	Effective: 8.57 Megapixel
Built-In ND Filter	No
Focus Control	Autofocus Manual Focus

Exposure Control

Shutter Speed	1/10000 to 1 Second
Signal-to-Noise Ratio	50 dB
Minimum Illumination	0.1 Lux
Flip / Mirror Support	Image Flip, Mirror (Vertical)
White Balance	Range: 1700 to 10,000K Presets: One Push, Indoors, Outdoors, Manual, ATW, Auto

Lens

Focal Length	4.6 to 135mm
Optical Zoom Ratio	30x
Max Digital Zoom	12x
Field of View	Horizontal: 68° Vertical: 38.3° Diagonal: 78°
Maximum Aperture	f/1.6 to 3.4
Minimum Focus Distance	Wide: 59.1" / 1.5 m

Video Capture

External Recording Modes	SDI/BNC / HDMI / RJ45 3840 x 2160 at 25/29.97 fps SDI/BNC / HDMI / RJ45 1920 x 1080p at 25/29.97/50/59.94 fps 1280 x 720 at 50/59.94 fps
Broadcast Output	NTSC
IP Streaming	H.264, NDI\|HX 3840 x 2160 at 29.97p 640 x 360 at 29.97p

Control

Presets	256 via IP, IR, RS-232, VISCA
Move Speed	Pan: 300°/sec Tilt: 300°/sec
Movement Range	Pan: 340° (-170 to 170°) Tilt: 120° (-30 to 90°)
Tally Light	Yes
Supported Control Protocols	IP IR Pelco-D RS-232 VISCA

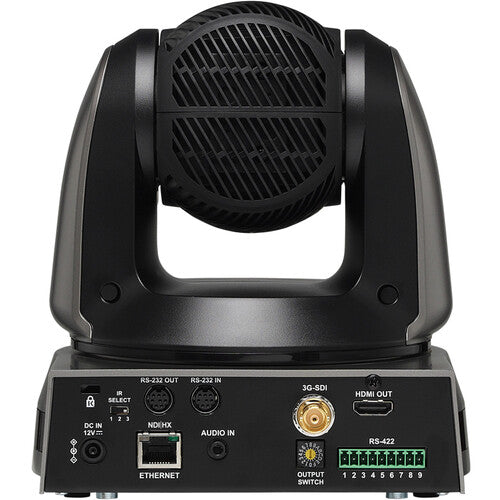

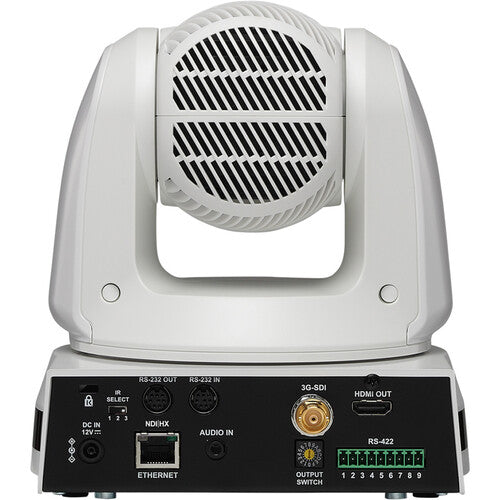

Interface

Video I/O	1x HDMI Output 1x RJ45 (NDI) Output
Audio I/O	1x 1/8" / 3.5 mm TRS Stereo Mic/Line Input
Other I/O	1x Mini-DIN 8-Pin (Pelco-D, Pelco-P, RS-232, VISCA) Input 1x Mini-DIN 8-Pin (Pelco-D, Pelco-P, RS-232, VISCA) Output 1x Block 9-Pin (RS-422) Input 1x RJ45 (LAN) Control
Built-In Speaker	No

Power

PoE Support	PoE+ 802.3at
Power I/O	1x Barrel (12VDC) Input
Power Consumption	Power Supply: 16 W PoE: 18 W

General

Mounting	1x 1/4"-20 Female for Tripod 7x M3 Female for Ceiling
Certifications	FCC Part 15 Class A, ICES-003, EN 55032
Dimensions (W x H x D)	6.9 x 7.5 x 7.4" / 17.4 x 19 x 18.7 cm
Weight	4.4 lb / 2 kg (Body Only)
