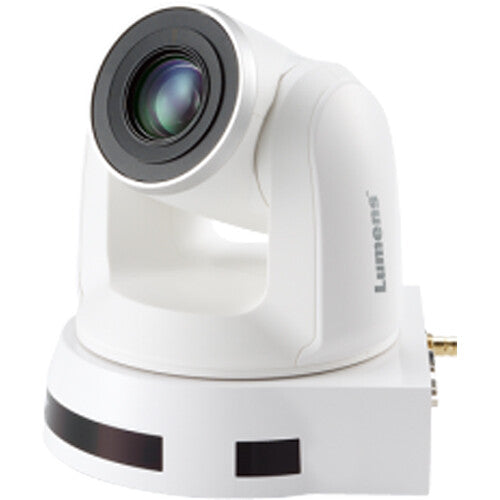

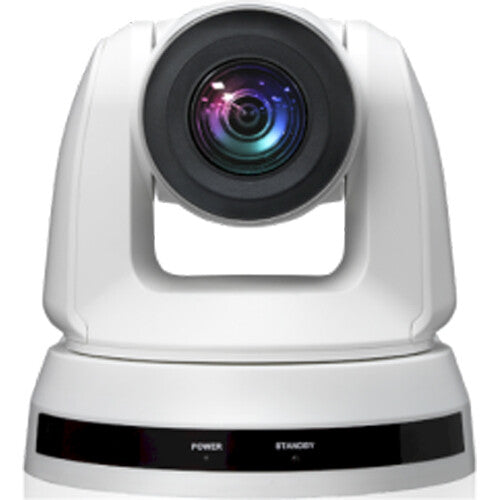

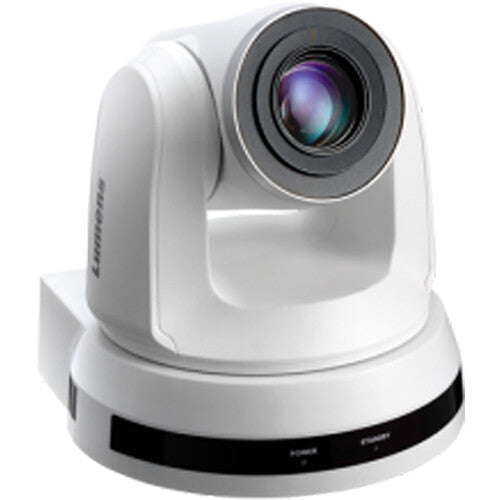

VC-A51PW 20x Optical Zoom IP/3GSDI/HDMI PTZ Camera - White
VC-A51PW 20x Optical Zoom IP/3GSDI/HDMI PTZ Camera - White
Key Features
- Sony 1/2.8" 2.16MP CMOS Sensor
- 1080p60 via HDMI, 3G-SDI & IP Output
- 20x Optical Zoom, 3.5mm Audio Input
- Streaming Video Output via Ethernet
- IP/RS-232/422 Serial Control
- Power-over-Ethernet (PoE+) Support
- Store up to 128 Presets
Lumens VC-A51P Overview
Add a high-quality, multifunction PTZ camera to your conference room, event space, education environment, or house of worship with the white PTZ Video Conferencing Camera with 20x Optical Zoom from Lumens. The compact camera features a 20x optical zoom lens and outputs simultaneously via 3G-SDI, HDMI, or IP streaming, and it supports up to 1080p60 resolution.
You can embed audio into your streams using the 3.5mm stereo analog audio input. It can be controlled via IP or via an optional RS-232 or RS-422 serial controller using VISCA, Pelco-P, Pelco-D, or ONVIF control protocols. It supports up to 128 presets using serial or IR controllers, so you can quickly recall numerous camera angles. It can also be powered using PoE+ on a supported network to save power cable runs.
Key Features
Outstanding Color Reproduction
With 1080p resolution, the VC-A51P can be used in demanding AV or broadcast environments. Its 1/2.8" 2.16MP Sony CMOS sensor delivers accurate color and a high level of detail, even in low light conditions. Images are captured with a natural look whether projected onto a big screen or streamed to mobile users.
High-Precision Autofocus
Lumens' autofocus system is fast, accurate, and able to track subjects in motion. This level of automation gives users the confidence to concentrate on framing the picture, leaving the camera to deliver sharp images without user input
Adaptive Robotic Control
With high-precision motor control, the VC-A51P can run at a speed required by the user. At very low speeds, the camera remains stable without juddering. At high speeds, the smoothness of the motors avoids distracting image blur.
Local and Remote Production
Equipped with DC power and Power over Ethernet (PoE+), RS-232, RS-422, and Ethernet control interfaces, and featuring live video-over-IP monitoring, the VC-A51P gives users flexibility. The camera can be controlled and monitored locally or remotely over an IP network. Its versatility means that it is ready for all the production challenges that you face.
Applications
Live Events and Conferences
Stream events, graduations, presentations, and ceremonies to on-site and remote audiences.
Higher-Ed Classroom
Engage more effectively with remote students with live streaming and high-quality video on demand.
House of Worship
Houses of worship can incorporate live streaming to extend their reach among worshippers.
Lumens VC-A51PSpecs
Key Specs
| Image Sensor |
1/2.8"-Type CMOS
|
| Sensor Resolution |
Effective: 2.16 Megapixel (1920 x 1080)
|
| Shutter Speed |
1/10000 to 1 Second
|
| Optical Zoom Ratio |
20x
|
| External Recording Modes |
SDI/BNC / HDMI / RJ45
1920 x 1080p at 25/29.97/50/59.94 fps 1920 x 1080i at 50/59.94 fps 1280 x 720 at 50/59.94 fps |
| Broadcast Output |
NTSC
|
| IP Streaming |
H.264, MJPEG, ONVIF, RTMP, RTMPS, RTSP, SRT
1920 x 1080 at 30p, 60p |
| Supported Control Protocols |
IP
IR Pelco-D Pelco-P RS-232 RS-485 VISCA |
| PoE Support |
PoE+ 802.3at
|
| Mounting |
1x 1/4"-20 Female for Tripod
|
Imaging
| Image Sensor |
1/2.8"-Type CMOS
|
| Sensor Resolution |
Effective: 2.16 Megapixel (1920 x 1080)
|
| IR Cut Filter |
No
|
| Built-In ND Filter |
No
|
| Focus Control |
Autofocus
Manual Focus |
Exposure Control
| Shutter Speed |
1/10000 to 1 Second
|
| Signal-to-Noise Ratio |
50 dB
|
| Minimum Illumination |
1 Lux
|
| Flip / Mirror Support |
Image Flip, Mirror (Vertical)
|
| White Balance |
Range: 3000 to 8000K
Presets: One Push, Indoors, Outdoors, Manual, ATW, Auto |
Lens
| Focal Length |
5.3 to 110mm
|
| Optical Zoom Ratio |
20x
|
| Field of View |
Horizontal: 57°
Vertical: 32.1° Diagonal: 65.4° |
| Maximum Aperture |
f/1.6 to 3.8
|
Video Capture
| External Recording Modes |
SDI/BNC / HDMI / RJ45
1920 x 1080p at 25/29.97/50/59.94 fps 1920 x 1080i at 50/59.94 fps 1280 x 720 at 50/59.94 fps |
| Audio Recording |
48 kHz AAC Audio
|
| Broadcast Output |
NTSC
|
| IP Streaming |
H.264, MJPEG, ONVIF, RTMP, RTMPS, RTSP, SRT
1920 x 1080 at 30p, 60p |
Control
| Presets |
128 via IP, IR, RS-232, VISCA
|
| Move Speed |
Pan: 300°/sec
Tilt: 300°/sec |
| Movement Range |
Pan: 340° (-170 to 170°)
Tilt: 120° (-30 to 90°) |
| Tally Light |
Yes
|
| Supported Control Protocols |
IP
IR Pelco-D Pelco-P RS-232 RS-485 VISCA |

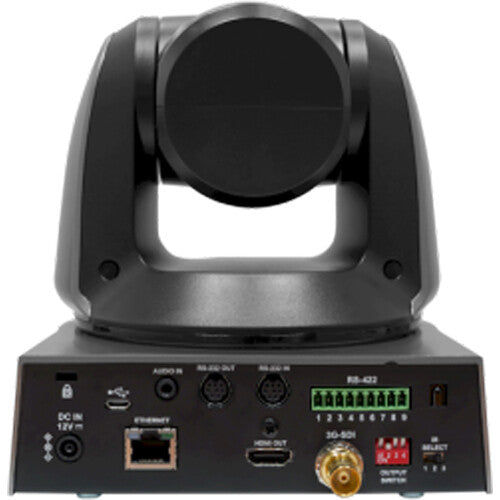

Interface
| Video I/O |
1x HDMI Output
1x BNC (3G-SDI) Output 1x RJ45 Output |
| Audio I/O |
1x 1/8" / 3.5 mm TRS Stereo Line Input
|
| Other I/O |
1x Mini-DIN 8-Pin (Pelco-D, Pelco-P, RS-232, VISCA) Input
1x Mini-DIN 8-Pin (Pelco-D, Pelco-P, RS-232, VISCA) Output 1x Block 9-Pin (RS-422) Input 1x RJ45 (LAN) Input/Output 1x Micro-USB Input |
| Built-In Speaker |
No
|
Power
| PoE Support |
PoE+ 802.3at
|
| Power I/O |
1x Barrel (12VDC) Input
|
| Power Consumption |
Device: 12 VDC 17 W
PoE: 18.5 W |
General
| Mounting |
1x 1/4"-20 Female for Tripod
|
| Dimensions (W x H x D) |
6.9 x 7.3 x 7.4" / 17.4 x 18.6 x 18.7 cm
|
| Weight |
4.4 lb / 2 kg (Body Only)
|
Packaging Info
| Package Weight |
8.205 lb
|
| Box Dimensions (LxWxH) |
13.3 x 11.5 x 10.5"
|
