Magewell Capture

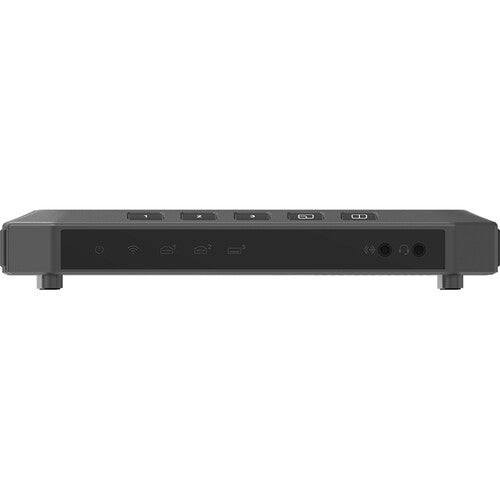

USB Fusion - Video Mixer and Switch. 2x HDMI and 1x USB input, 1x HDMI output

Key Features

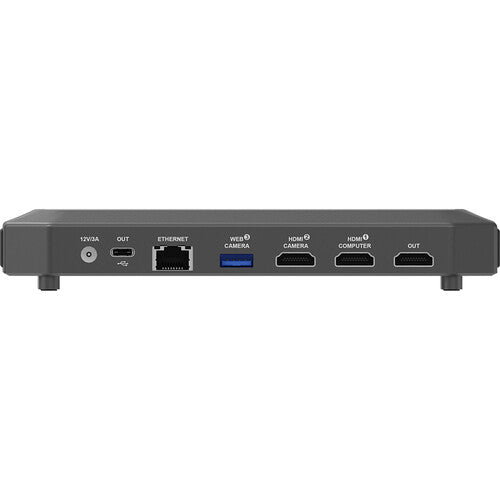

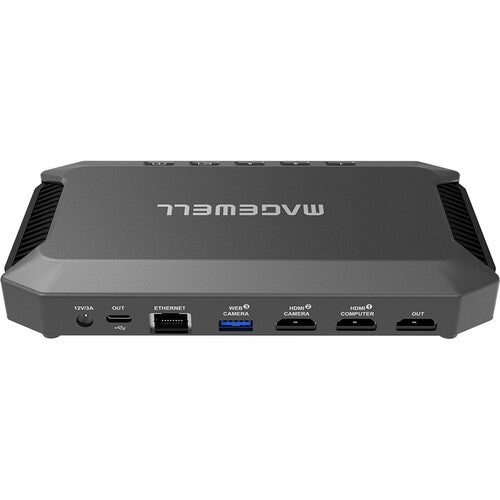

2 x HDMI Inputs, 1 x USB Type-A Input
1 x HDMI Output, 1 x USB Type-C Output
RJ45 Ethernet Port, Audio In/Out
Combine WebCam and Screen Share Content

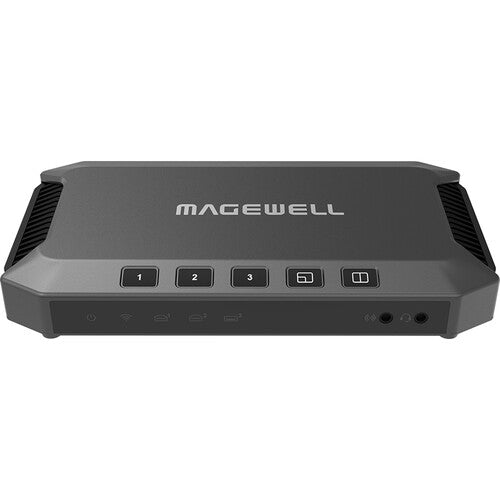

Onboard Buttons, LED Indicators
Built-In Web UI & App Control

Magewell USB Fusion Overview

Combine live video sources and screen-shared content for more engaging presentations using this USB Fusion HDMI & USB Video Capture Device from Magewell and its USB 3.0 and HDMI connectivity. Two HDMI inputs and one USB Type-A input take in video up to 1080p at 60 fps from sources like webcams, computers, or other recording sources. An HDMI and a USB-C output then deliver that video to a monitor or streaming computer to share those visuals.

Connectivity

Headphones or microphones can be integrated into the system with the 3.5mm audio jacks. An RJ45 Ethernet port supports 1000 Mb/s Ethernet to connect to Wi-Fi for control via the built-in Web UI program. The USB Fusion has onboard buttons on the top panel to toggle between different sources and display orientations as well as LED indicators to show connectivity. An app compatible with tablets and other mobile devices can add more advanced control.

Companion App for Engaging Presentations

Create presentation playlists in advanced
Incorporate pre-recorded audio and other media files
Annotation tools can mark up materials and exported for sharing
Draw on video in real time
Session can be recorded through the app to Fusion's built-in storage

Compatibility and Capability

Supports multiple scene display modes like single view, picture in picture, and side by side
High-quality video processing with zero CPU usage
USB 3.0 interface for high-speed data transferring
Broad software compatibility for streaming
Automatic, driver-free installation with support for Windows, Mac, and Linux OS

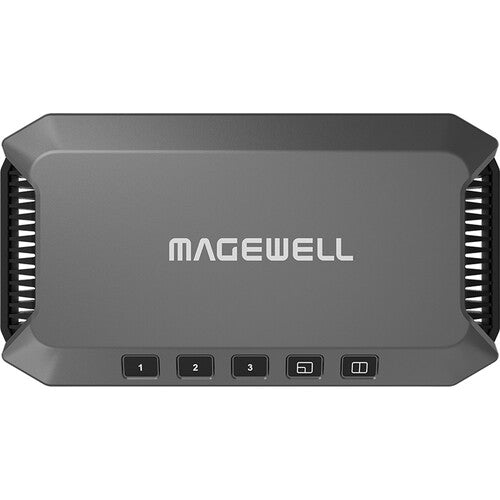

Onboard control buttons switch sources and picture modes
LED indicators for connection status

Control via Web UI

Users and administrators can configure and manage hardware and presentations through a browser-based web UI or programmatic API. Integrate multiple Fusion devices via Magewell Cloud.

Magewell USB FusionSpecs

Key Specs

Video I/O

Input
2x HDMI 1.4a Female
1x USB-A 3.0 / 3.1/3.2 Gen 1 Female
Output
1x USB-C 3.0 / 3.1/3.2 Gen 1 Female
1x HDMI 1.4a

Audio I/O

Input
1x 1/8" / 3.5 mm TRS
Input/Output
1x 1/8" / 3.5 mm TRRS Headphone/Microphone

Video Resolution

HDMI Input
2048 x 1080p up to 60 fps
USB-A Input
2048 x 1080p up to 60 fps
HDMI Output
2048 x 2048
USB-A Output
1920 x 1080 at 15/30/60 fps
1280 x 720 at 15/30/60 fps
640 x 480 at 15/30/60 fps

IP Video	Encoding RTMP 1280 x 720 to 1920 x 1080 at 60p
IP Audio	Encoding
Wireless	Wi-Fi 6 (802.11ax)

Audio I/O	Input 1x 1/8" / 3.5 mm TRS Input/Output 1x 1/8" / 3.5 mm TRRS Headphone/Microphone
Other I/O	Input/Output 1x RJ45 (10/100/1000 Ethernet)
Expansion Slots	No
Video Resolution	HDMI Input 2048 x 1080p up to 60 fps USB-A Input 2048 x 1080p up to 60 fps HDMI Output 2048 x 2048 USB-A Output 1920 x 1080 at 15/30/60 fps 1280 x 720 at 15/30/60 fps 640 x 480 at 15/30/60 fps
Embedded Audio	HDMI Input: 8-Channel 1/8" / 3.5mm TRRS A/V Input: 2-Channel USB Input: 4-Channel HDMI/LAN (RJ45)/USB Output: 2-Channel

Standards

HDCP Support

IP Streaming

IP Video	Encoding RTMP 1280 x 720 to 1920 x 1080 at 60p
IP Audio	Encoding
Transport Protocols	RTMP

Hardware

Wireless

Wi-Fi 6 (802.11ax)

Power

Power I/O	1x Barrel (12 VDC at 3 A) Input
Power Consumption	17.5 W

General

Operating Conditions	32 to 122°F / 0 to 50°C at 5 to 90% Humidity
Storage Conditions	-4 to 158°F / -20 to 70°C
Dimensions	7.3 x 4 x 1.2" / 186 x 101.2 x 30 mm

Packaging Info

Package Weight	2.485 lb
Box Dimensions (LxWxH)	8.4 x 5.1 x 3.7"
