USB Capture SDI Plus

Key Features

Capture SD/HD/3G/2K-SDI & Embedded Audio
Loop-Through SD/HD/3G/2K-SDI
Line-In Audio Input
De-Embed Audio from SDI

Magewell 32050 Overview

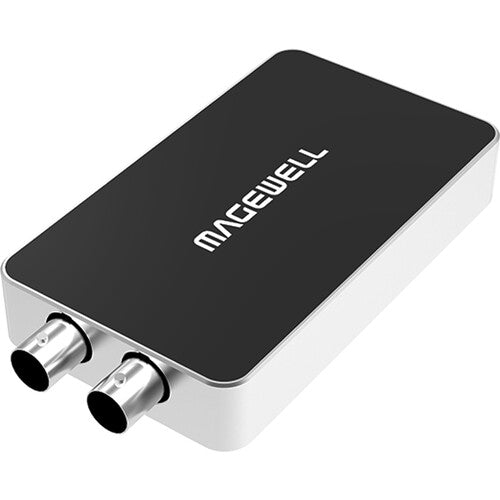

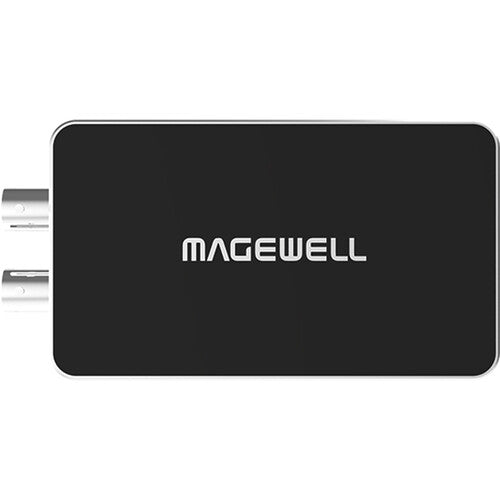

The Magewell USB Capture SDI Plus is a one-channel 2K capture device that interfaces with your computer via USB 3.0. It features loop-through BNC input/output that allows you to see your video on a downstream device, while you are capturing it into your computer. It also has a line-in audio input, for capturing audio directly, without picture, or you can de-embed the audio from the SDI stream.

Video Processing

Video processing pipelines with 160MP processing bandwidth
Video cropping
Video scaling
Video de-interlacing
Weave
Blend top & bottom field
Top field only
Bottom field only
Video aspect-ratio conversion
Auto or manual selection of input aspect ratio
Auto or manual selection of capture aspect ratio
Three aspect-ratio conversion modes: Ignore (Anamorphic), Cropping, or Padding (Letterbox or Pillarbox)
Video color-format conversion
Auto or manual selection of input color format & quantization range
Auto or manual selection of capture color format, quantization range & saturation range
Support for RGB, YCbCr 601, YCbCr 709 color formats
Support for Limited or Full quantization range
Support for Limited, Full & 'Extended gamut' saturation range
Video frame-rate conversion
Vertical flip and mirror

Multiple Devices on One Computer

Support for connecting multiple USB devices to one system
Support for setting the device serial number as the device name shown in the system using USB Capture Utility

SDK

The USB Capture SDK provide functions including signal status extraction and capture configuration

LED Indicator

Status LEDs indicate the working state of each channel:

Pulsing slowly: idle
On: input signal locked
Off: input signal unlocked
Double blinks: memory failed or FPGA configuration failed

Magewell 32050Specs

Supported OS	Windows: 7/8/8.1/10/2008/2008 R2/2012 (x86 & x64) Linux: (Ubuntu 12.04-16.10, CentOS 7) OS X: 10.9-10.11 macOS: 10.12 Chrome OS
Supported APIs	Windows DirectShow Wave API/DirectSound/WASAPI Linux V4L2 ALSA OS X/macOS QuickTime AV Foundation
Supported Software	VLC VirtualDub OBS XSplit vMix VidBlaster Wirecast Microsoft Media Encoder Adobe Flash Media Encoder Any Other DirectShow, V4L2, QuickTime, AV Foundation Based Encoding, or Streaming Software

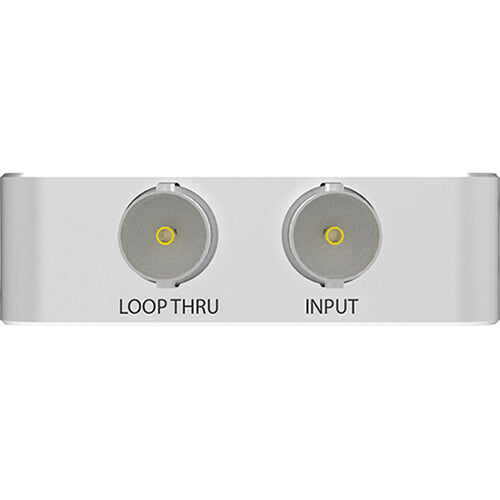

Input Interface	SD/HD/3G-SDI: 1 x BNC Unbalanced Line-In: 3.5 mm Jack

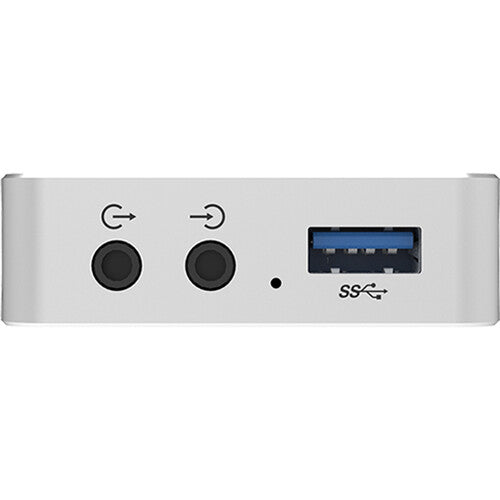

Output Interface	Loop-Through: 1 x BNC Unbalanced Line-Out: 3.5 mm Jack
Host Interface	USB 3.0: Compatible with USB 2.0/3.1
Input	Resolution Supports up to 2048 x 1080 SDI Specific Features Integrated Cable Equalizer Supporting Cable Lengths up to 459' / 140 Meters for 3G-SDI Signals Support for SD/HD/3Ga/3Gb/3Ga-DL/3Gb-DS Standards Support for 2K (2048×1080) Mode Support for RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2 Color Sampling Support for 10/12-bit Color Depth Support for extraction of SMPTE 352 Payload Identifier Support for up to 2 (Mono) Audio Channels at 48 kHz Support for Extraction of Audio Formation Information & Channel Status Data Limited Support of 3Gb-DS: Only the First Stream Can Be Captured Limited Support for Capture of the First Link of Dual-Link Interfaces: YCbCr 4:2:2 10-Bit 1080p 50/59.94/60: Captured as 1080i 50/59.94/60 YCbCr 4:4:4 10-Bit: Captured as 4:2:2 RGB 4:4:4: R/B Sub-Sampled
Analog Audio	Extract the Embedded SDI Audio and Output via 3.5 mm Unbalanced Line Out Capture Analog Audio via 3.5 mm Unbalanced Line-In Interface
Video Capture Format	Support for Capture Resolutions up to 2048×1080 Support for Capture Frame Rates up to 120 fps (Actual Capture Frame Rate Can Be Limited by the USB Bandwidth and Internal Working Frequency. Typical Capture Frame Rates on the Intel USB 3.0 Controller are as Follows:) 1920×1080 YUY2 (up to 70 fps) 1920×1080 RGB24 (up to 60 fps) Support for YUY2 & UYVY4:2:2 8-Bit Support for RGB24 & RGB32 4:4:4 8-Bit The Default Capture Format Is YUY2 More Capture Format Can Be Set Using USB Capture Utility
Power Consumption	5 V Max Current: ~0.5 A Max Power Consumption: ~2.5 W
Environment	Operating Temperature: 32 to 122°F / 0 to 50°C Storage Temperature: -4 to 158°F / -20 to 70°C Relative Humidity: 5 to 90% Non-Condensing
Dimensions	4.36 x 2.24 x 0.67" / 11.07 x 5.68 x 1.7 cm

Packaging Info

Package Weight	0.45 lb
Box Dimensions (LxWxH)	5.3 x 5.3 x 1.1"
