Magewell Stream

Ultra Stream HDMI

Ultra Stream HDMI

Key Features

  • Single-Channel HD Streaming Encoder
  • Accepts HDMI Video Sources up to DCI 4K
  • HDMI Loop Output
  • Stream up to 1080p Resolution in MP4
  • Deliver to Platforms and RTMP Addresses
  • Ethernet and Wi-Fi Connectivity

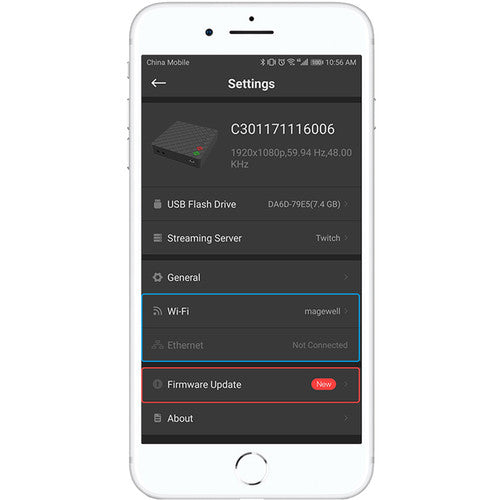

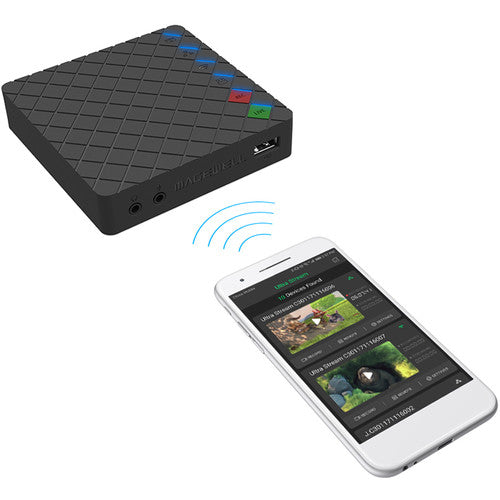

  • iOS/Android App Control
  • Microphone Input and Headphone Output
  • Record to USB or Mobile Device

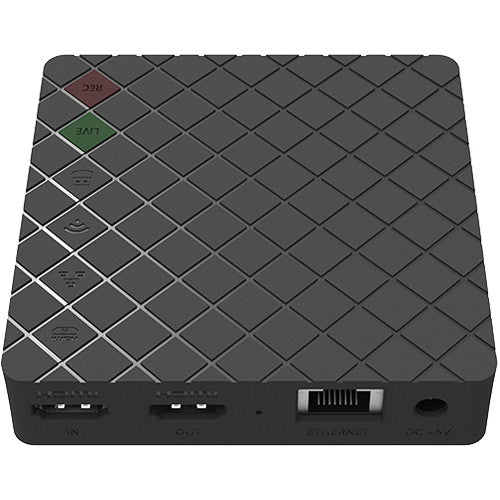

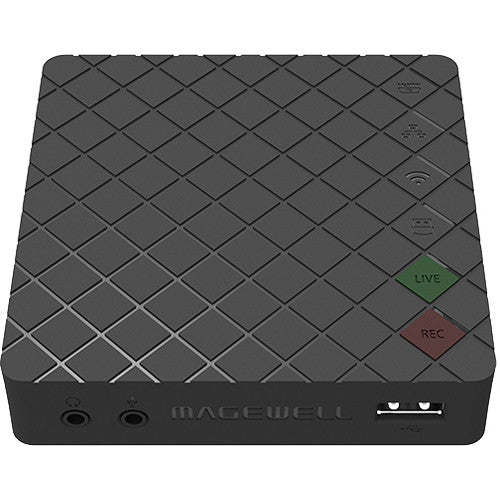

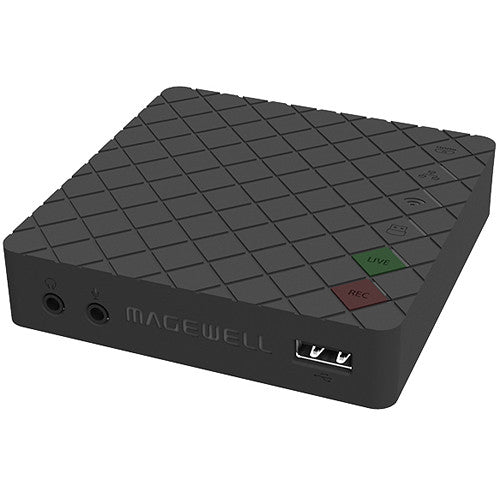

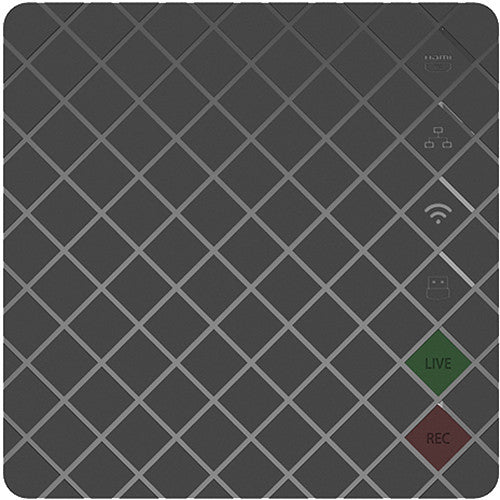

Magewell Ultra Stream HDMI Overview

The Magewell Ultra Stream HDMI is a single-channel HDMI streaming encoder that can encode streams up to 1080p at 60 fps for popular content delivery networks (CDNs) such as YouTube Live, Facebook Live, and Twitch, or custom RTMP servers. Simultaneously, you can record the stream to your mobile device or a USB drive plugged into the front panel USB 2.0 port. All the device's controls are found in the mobile app for iOS and Android devices. Simple push-button controls to start/stop streaming and recording are on the unit itself.

The HDMI input can accept UHD and DCI 4K signals up to 60 fps, so streaming from PCs or game consoles that support 4K output doesn't require any other hardware. Use the HDMI loop output to view the unaffected input signal at its full resolution. Internally, the Ultra Stream HDMI will downscale it appropriately for streaming and/or recording. If you like to have live audio over your streams and recordings, use the 3.5mm input jack to plug in a mic and the other 3.5mm jack to monitor on headphones.

Magewell Ultra Stream HDMISpecs

Inputs
HDMI: 1 x HDMI type A, v1.4a
Microphone: 1 x 3.5 mm
Outputs
HDMI: 1 x HDMI type A, loop output
Headphones: 1 x 3.5 mm
Other I/O
Storage: 1 x USB 2.0 Type-A
Ethernet: 1 x RJ45
Resolution Support
Input: Up to 4096 x 2160 at 30 fps (4:4:4, 4:2:2 sampling) or 60 fps (4:2:0 sampling)
Recording: Up to 1920 x 1080 at 60 fps
Frame Rate Support
Input: 60/60i/30/25
Recording: 60/50/30/25/24/15
Sampling
Input: 12/10/8-bit 4:4:4, 4:2:2, 4:2:0
Recording: 8-bit, 4:2:0
Wireless Connectivity
Wi-Fi: IEEE 802.11 a/b/g/n/ac
Bluetooth: 4.0 BLE
Power Input
1 x Coaxial, 5 VDC, 2 A
Power Consumption
6 W (max)
Environmental
Operating Temperature: 32 to 104°F / 0 to 40°C
Storage Temperature: -4 to 158°F / -20 to 70°C
Relative Humidity: 5-90%, non-condensing
Dimensions
3.7 x 3.7 x 1.1" / 94 x 94 x 29 mm

Packaging Info

Package Weight
1.25 lb
Box Dimensions (LxWxH)
6.9 x 4.7 x 0.86"
