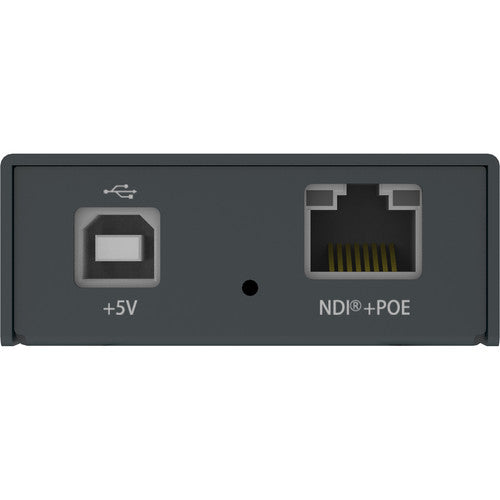

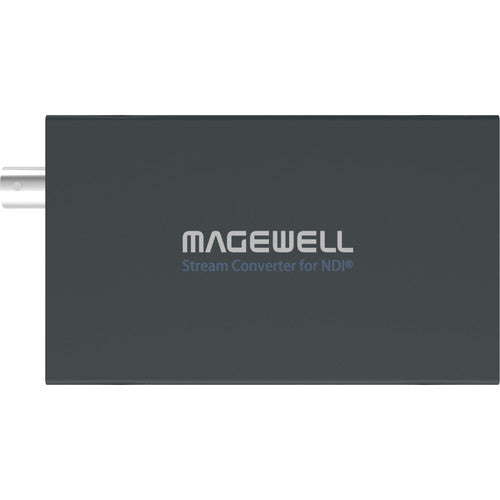

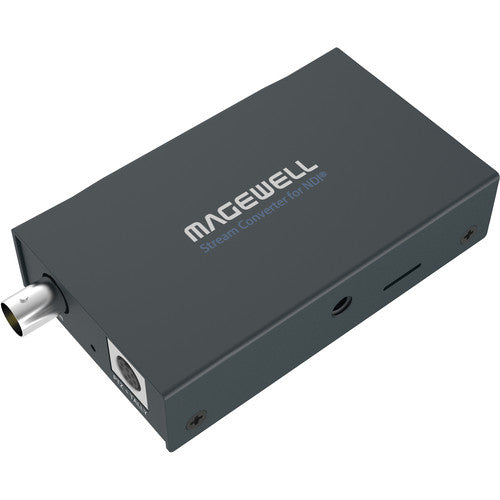

ThePro Convert SDI TX 1-Channel NDI EncoderfromMagewellallows you to convert an SDI signal with embedded audio to an NDI stream. It supports resolutions up to 2048 x 1080 at 60p on both input and NDI output. The device can be powered via an included power adapter or over PoE using the NDI port. It features a 1/4"-20 thread for camera mounting and can be used in the studio or in the field thanks to a compact and robust design. There's also a PTZ+tally shared mini-DIN port for connecting tally lights or setting up NDI-based PTZ camera control. A tally light accessory comes included.
A companion Web UI allows assigning the device name, source name, and other settings. The encoder also has an on-board SD card slot but it is not functional at the time of this writing. Any future firmware updates will also be accessible via the Web UI.
The Pro Convert SDI TX Encoder additionally features an integrated cable equalizer that allows for SDI cables lengths up to 590'.
SDI Specific Features
Integrated cable equalizer allows SDI cable lengths up to 590'
Support for SD/HD/3Ga/3Gb/3Gb-DL/3Gb-DS (SMPTE 2081) standards
RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2 color sampling
8-/10-/12-bit color depth
Support for extraction of SMPTE 352 payload identifier
Supports 16-input (mono) and 16-output audio channels
Allows extraction of audio formation information and channel status data
YCbCr 4:2:2 10-bit 1080p 50/59.94/60: captured as 1080i 50/59.94/60
YCbCr 4:4:4 10-bit: captured as 4:2:2
RGB 4:4:4: R/B sub-sampled
NDI Output Format
4:2:2 8-bit output
Up to 2048 x 1080 at 60 fps
Support for NDI 3.x
Supported Web Browsers
Microsoft Internet Explorer 11
Microsoft Edge
Mozilla Firefox version 61 and above
Google Chrome version 49 and above
Apple Safari 11.1 and above
Opera 55.0.2994.44 and above
Supported Software
OBS
XSplit
vMix
VidBlasterX
Wirecast
streamstar SW
mimoLive
Any other NewTek NDI-enabled encoding or streaming software
Video Processing Features
Video brightness, contrast, saturation, and hue adjustment
Video de-interlacing: top field only; bottom field only
Auto or manual selection of output aspect ratio
Auto or manual selection of input color format and quantization range
Auto or manual selection of output color format, quantization range, and saturation range
Support for RGB, YUV BT.601, YUV BT.709, and YUV BT.2020 input color formats
Support for YUV BT.601, YUV BT.709, and YUV BT.2020 output color formats
Support for limited or full quantization range
Support for limited, full, and extended gamut saturation range
Video frame rate conversion
Video mirror flip
NDI Source Name
Set the device name and source name shown in the system using Web UI
Set board-index, from 0 to F, through an on-board rotary switch
