Magewell Pro Convert

Pro Convert HDMI TX

Key Features

Convert HDMI Signal to NDI Stream
Embedded Audio Supported
Up to 2048 x 1200 at 60p Input/Output

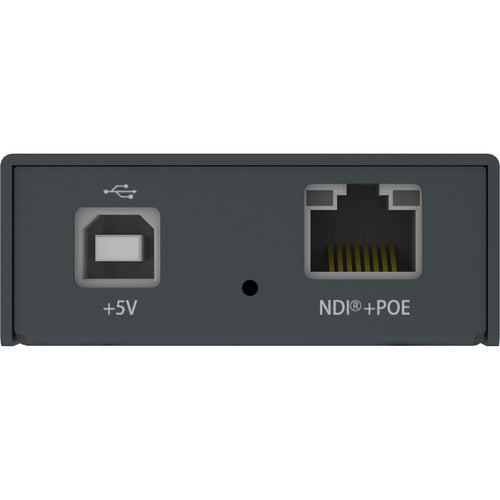

Power Adapter + PoE

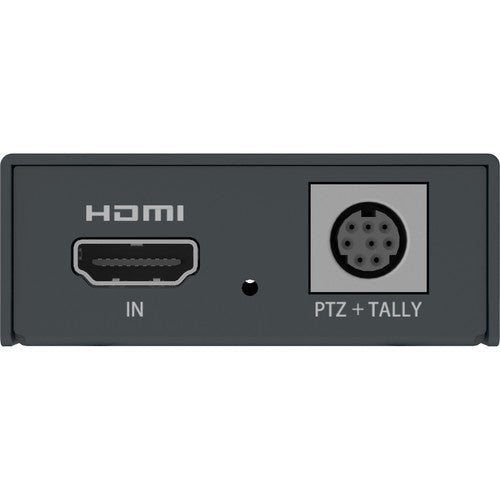

PTZ+Tally Shared Mini-DIN Port
1/4"-20 Mounting Thread
Web UI
HDMI Cable Lengths up to 98' Supported

Magewell HDMI TX Overview

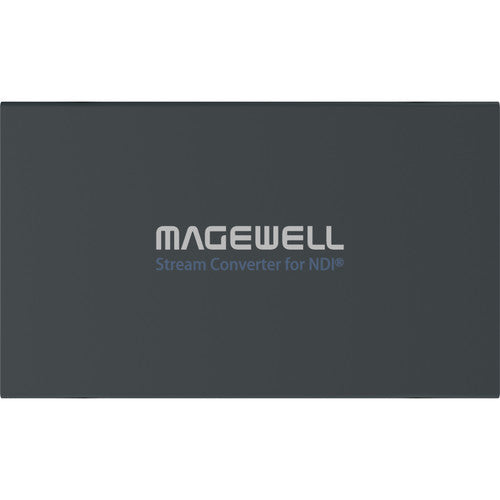

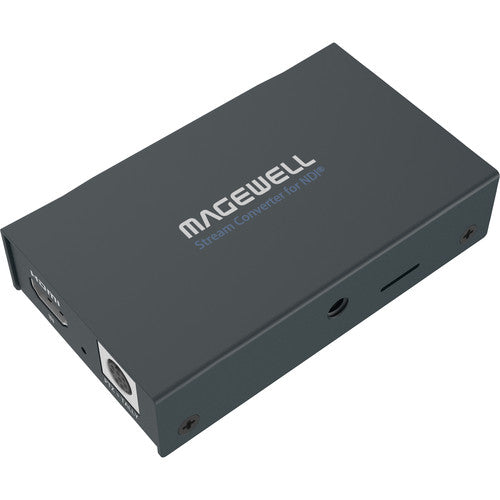

The Pro Convert HDMI TX 1-Channel NDI Encoder from Magewell allows you to convert an HDMI signal with embedded audio to an NDI stream. It supports resolutions up to 2048 x 1200 at 60p on both input and NDI output. The device can be powered via an included power adapter or over PoE using the NDI port. It features a 1/4"-20 thread for camera mounting and can be used in the studio or in the field thanks to a compact and robust design. There's also a PTZ+tally shared mini-DIN port for connecting tally lights or setting up NDI-based PTZ camera control. A tally light accessory comes included.

A companion Web UI allows assigning the device name, source name, and other settings. The encoder also has an on-board SD card slot but it is not functional at the time of this writing. Any future firmware updates will also be accessible via the Web UI.

The Pro Convert HDMI TX Encoder additionally features an adaptive HDMI equalizer that allows for HDMI cables lengths up to 98'.

HDMI Specific Features

165 MHz HDMI receiver
Adaptive HDMI equalizer support for cables lengths up to 98'
Customized EDID support
Extraction of AVI/Audio InfoFrames
Full colorimetry support
Up to 2048 x 1200 4:4:4/4:2:2 60 fps input signals
Support for 8-input and 2-output IEC60958 audio streams
Extraction of audio formation information and channel status data
Extraction of video timing information
Extraction of 3D format information
Side-by-side half, top-and-bottom, and frame packing 3D modes

NDI Output Format

4:2:2 8-bit output
Up to 2048 x 1200 at 60 fps
Support for NDI 3.x

Supported Web Browsers

Microsoft Internet Explorer 11
Microsoft Edge
Mozilla Firefox version 61 and above
Google Chrome version 49 and above
Apple Safari 11.1 and above
Opera 55.0.2994.44 and above

Supported Software

OBS
XSplit
vMix
VidBlasterX
Wirecast
streamstar SW
mimoLive
Any other NewTek NDI-enabled encoding or streaming software

Video Processing Features

Video processing pipelines with 160 megapixels per second
Video brightness, contrast, saturation, hue adjustment
Video de-interlacing: top field only; bottom field only
Auto or manual selection of output aspect ratio
Auto or manual selection of input color format and quantization range
Auto or manual selection of output color format, quantization range, and saturation range
Support for RGB, YUV BT.601, YUV BT.709, and YUV BT.2020 input color formats
Support for YUV BT.601, YUV BT.709, and YUV BT.2020 output color formats
Support for limited or full quantization range
Support for limited, full, and extended gamut saturation range
Video frame rate conversion
Video mirror flip

NDI Source Name

Set the device name and source name shown in the system using Web UI
Set board-index, from 0 to F, through an on-board rotary switch

Magewell HDMI TXSpecs

Inputs / Outputs

Video Inputs	1x HDMI (1.4)
Video Outputs	1x RJ45 (NDI)
Other I/O	1x Mini-DIN 8-Pin PTZ, Tally (Shared) 1x USB-B ECM, RNDIS Input (Shared Power USB-B)

Format Support

Input Video Format	DVI / HDMI (4:4:4/4:2:2 RGB, YUV) 2048 x 1200 at 60 fps
Output Video Format	RJ45 (8-Bit 4:2:2) 2048 x 1200 at 60 fps
Embedded Audio	HDMI Input: 8-Channel NDI Output: 2-Channel

Standards

EDID Support	Manual Control
HDR Support	Not Specified by Manufacturer

Hardware

OS Compatibility

Windows
macOS

Power

Power I/O	1x USB-B (5 VDC at 2.1 A) Input
PoE Support	PoE 802.3af
Power Consumption	Device: 6 W

Environmental

Operating Temperature	32 to 113°F / 0 to 45°C
Storage Temperature	-4 to 158°F / -20 to 70°C
Operating Humidity	5 to 90% ()

General

Dimensions

3.98 x 2.36 x 0.91" / 10.1 x 6 x 2.3 cm

Packaging Info

Package Weight	1.4 lb
Box Dimensions (LxWxH)	8.65 x 7.75 x 1.65"
