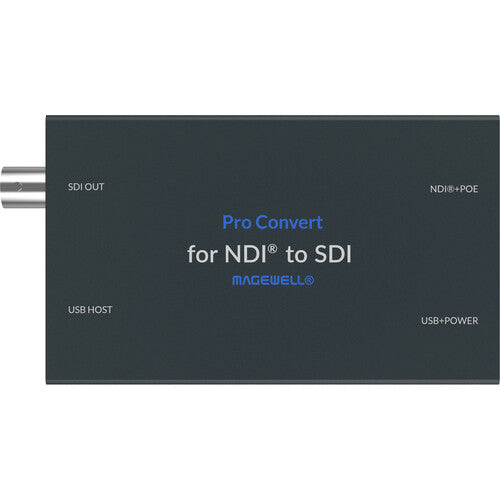

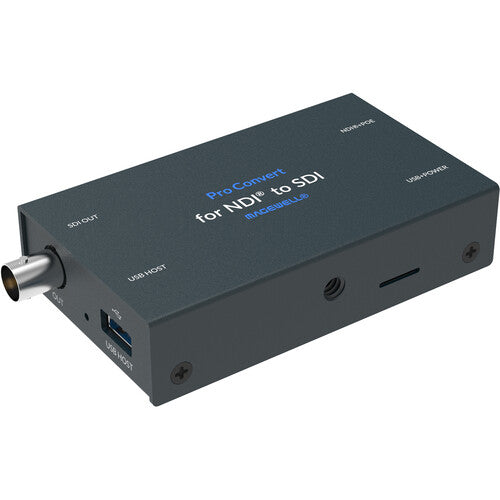

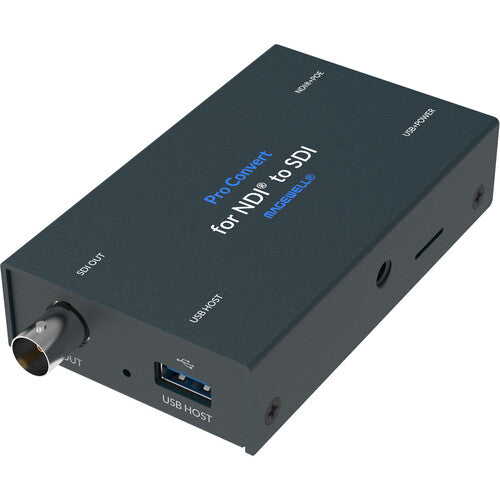

Use the Pro Convert for NDI to SDI Decoder from Magewell to convert an NDI stream with embedded audio to an SDI output signal. This converter supports resolutions up to 2K60 via NDI input and decodes at resolutions up to 1080p60 for 3G-SDI output. Designed to link baseband equipment to IP-based media networks, this component supports full-bandwidth NDI and high-efficiency NDI|HX modes up to NDI|HX3. Supported streaming protocols include SRT, RTSP, RTMP, UDP, RTP, HLS, and HTTP.
Configurable Web UI
The Pro Convert Web UI is compatible with a wide variety of web browsers and enables web configuration for settings such as the device name, source name, NDI and EDID identifiers, and other settings.
Decoding Features
Decodes NDI streams up to 2K60 including NDI, NDI|HX3, and NDI 4.5
Up to 1080p60 3G-SDI output signals
Supports YUV BT.601 and YUV BT.709 color
16-bit, 8-channel audio streams
Supports AAC/MP3 audio decoders
Compatible with H.264/H.265 streams in additional protocols including RTSP, HTTP, HLS, RTMP Pull/Push, and MPEG-TS over UDP/SRT/RTP
Supported Web Browsers
Microsoft Internet Explorer 11
Microsoft Edge
Mozilla Firefox version 61 and above
Google Chrome version 49 and above
Apple Safari 11.1 and above
Opera 55.0.2994.44 and above
Network Interfaces/PoE
10/100/1000 Mb/s Ethernet

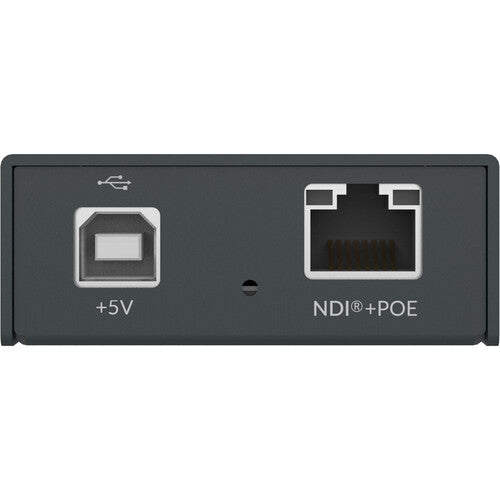

Can be powered via the included USB power adapter or over PoE using the RJ45 port
Onboard Controls
Menu and Select buttons
16-position rotary DIP switch: set board index from 0 to F
Incorporates a 1/4"-20 mounting thread
Magewell Pro ConvertSpecs
Inputs / Outputs
Video Inputs
1x RJ45 (NDI) Female
Audio Inputs
No
Video Outputs

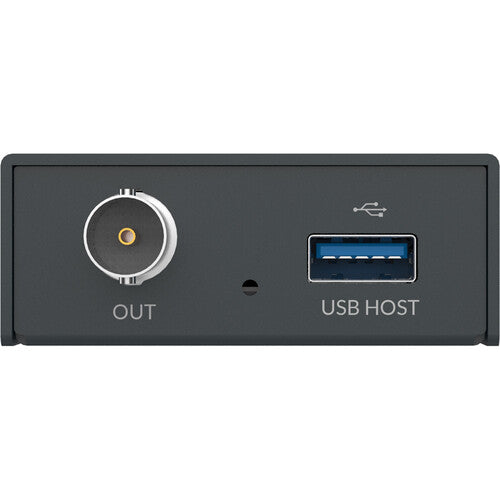

1x BNC (3G-SDI)
Audio Outputs
No
Other I/O
1x USB-B Control Input (Shared Power) 1x USB-A Control Input
Expansion Slots
No
Format Support
Input Video Format
RJ45 DCI 2K up to 60 fps
Output Video Format
SDI 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps 1080i at 50/59.94/60 fps 720p at 23.98/24/25/29.97/30/50/59.94/60 fps 576i / 625 lines at 50 fps 480i / 525 lines at 50 fps
Embedded Audio
LAN (RJ45)/SDI: 8-Channel
Standards
HDR Support
Not Specified by Manufacturer
IP Streaming
Video IP Decoding
H.264, H.265, NDI|HX2, NDI|HX3, RTMP, RTP, RTSP, UDP: 720 x 480 to 1920 x 1080 at 60p
