Magewell Pro Convert
Pro Convert for NDI to HDMI 4K
Pro Convert for NDI to HDMI 4K
Key Features
- Convert NDI Stream to HDMI Video

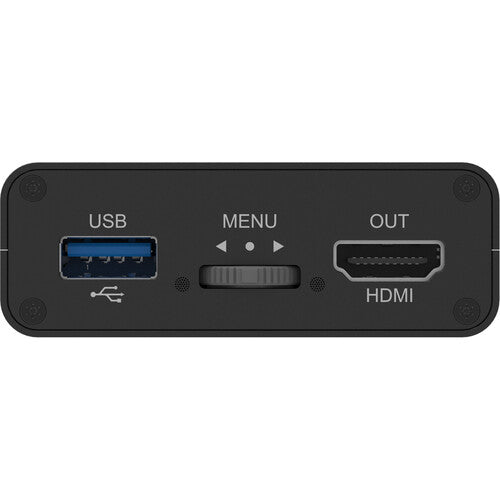

- 1 x HDMI Output, 1 x USB Host Connection
- 1 x Gigabit RJ45 + PoE NDI Input
- Output up to DCI 4K60 8-Bit 4:4:4 Video
- NDI, NDI|HX / HX2 / HX3 Stream Support
- RTSP, HLS, RTMP, SRT Streaming Support
Magewell Pro Convert Overview
Convert 4K video from an NDI stream into HDMI with the Pro Convert NDI to HDMI 4K video signal converter from Magewell. The Pro Convert 12G-SDI 4K Plus features one RJ45 Gigabit Ethernet port that supports NDI input up to DCI 4K 4096 x 2160p60, and it decodes up to DCI 4K 4096 x 2160p60 8-bit 4:4:4 video via one HDMI output with eight channels of embedded audio. With the latest firmware update, the converter supports NDI|HX, NDI|HX2, and NDI|HX3 stream decoding.

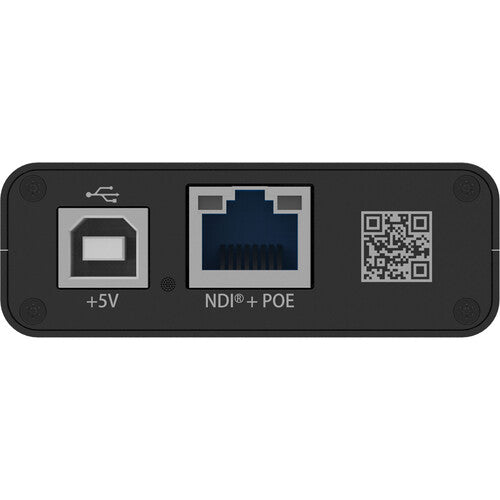

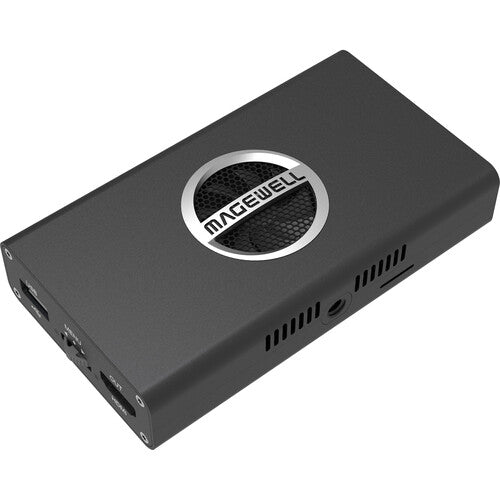

The unit is powered by a 5V power adapter connected to its USB 2.0 Type-B port or via PoE over its RJ45 port. It can also connect to a computer via its USB Type-A host port for control via a keyboard/mouse. The Pro Convert can be managed with a web UI to configure settings and to perform firmware updates via the USB port. A 1/4"-20 mounting thread allows you to mount the unit in a rack, with a bracket, or on a stand. Included with the Pro Convert are a USB cable, a 5V power adapter, and an L-bracket for mounting.
Key Features
- Support for up to 4096 x 2160p60 8-bit 4:4:4 decoded HDMI output
- Support for up to eight 48 kHz audio channels
NDI Format
- Support for up to 4096 x 2160p60 video input
- Send NDI streams across network segments
- Full NDI, NDI|HX, NDI|HX2, NDI|HX3, RTSP, HTTP, HLS, RTMP Pull/Push and MPEG-TS over UDP/SRT/RTP protocols (with latest firmware update)
- Remotely control PTZ cameras via NDI
- Support for NDI 5.x
- H.264/H.265 video decoders; AAC/MP3 audio decoders
Features
- Very low latency
- Advanced configuration and device status through intuitive Web GUI
- HTTP-based APIs for custom integration
Magewell Pro ConvertSpecs
Inputs / Outputs
| Video Inputs |
1x RJ45 (HX/NDI) Female
|
| Video Outputs |
1x HDMI (2.0) Female
1x RJ45 (NDI) Female |
| Other I/O |
1x RJ45 LAN, NDI, PoE Input/Output
1x USB-B Firmware Input 1x USB-A Control, Firmware Input |
| Expansion Slots |
No
|
Format Support
| Input Video Format |
SDI (10/12-Bit)
DCI 4K at 23.98/24/25/29.97/30/50/60 fps UHD 4K 23.98/24/25/29.97/30/50/59.94/60 fps DCI 2K 25/29.97/30/50/59.94/60 fps 1080p 23.98/24/25/29.97/30/50/59.94/60 fps 1080i 50/59.94/60 fps 720p 50/59.94/60 fps 576p 25 fps 576i / 625 lines 50 fps 480p 29.97 fps 480i / 525 lines 59.94 fps |
| Output Video Format |
HDMI (8-Bit 4:4:4)
DCI 4K at 23.98/24/25/29.97/30/50/59.94/60 fps UHD 4K 23.98/24/25/29.97/30/50/59.94/60 fps DCI 2K 23.98/24/25/29.97/30/50/59.94/60 fps 1080p 23.98/24/25/29.97/30/50/59.94/60 fps 1080i 25/29.97/30/50/59.94/60 fps 720p 50/59.94/60 fps |
Standards
| EDID Support |
Manual Control
|
| HDR Support |
No
|
Hardware
| Wireless |
No
|
| OS Compatibility |
Windows
macOS |
Power
| Power I/O |
1x USB-B (5 VDC at 2.1 A) Input
|
| PoE Support |
PoE 802.3af
|
| Power Consumption |
Power Supply: 5 VDC at 2.1 A (7.2 W)
|
Environmental
| Operating Temperature |
32 to 113°F / 0 to 45°C
|
| Storage Temperature |
-4 to 158°F / -20 to 70°C
|
| Operating Humidity |
5 to 90%
|
General
| Dimensions |
4.65 x 2.64 x 0.91" / 11.8 x 6.7 x 2.3 cm
|
Packaging Info
| Package Weight |
1.515 lb
|
| Box Dimensions (LxWxH) |
9 x 4.6 x 2.7"
|
