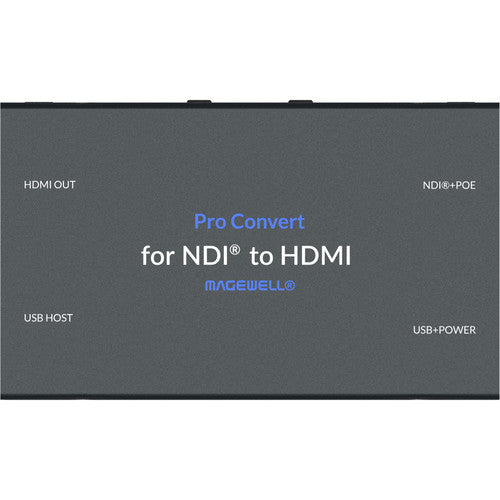

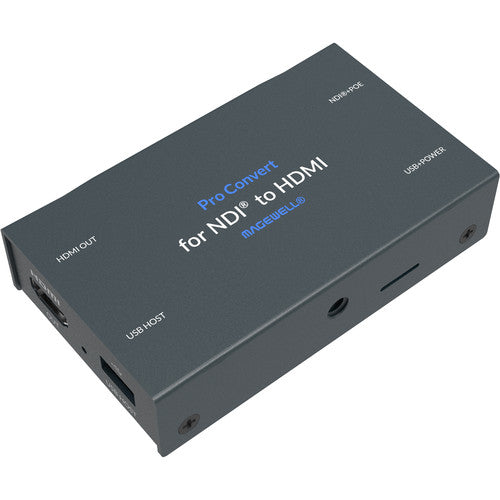

Pro Convert for NDI to HDMI
Pro Convert for NDI to HDMI
Key Features
- Convert NDI Signal to HDMI Stream
- Embedded Audio Supported
- Up to DCI 4K NDI Input
- Up to 2K60p or 4K15 HDMI Output
- Power Adapter + PoE
- HDMI/DVI Output, EDID Support
- 1/4"-20 Mounting Thread
- Web UI, LED, Tally Indicators
Magewell NDI to HDMI Overview
Use the Pro Convert NDI to HDMI Decoder from Magewell to convert an NDI stream with embedded audio to an HDMI signal output. It supports resolutions up to 4K60 over NDI input, and decodes NDI|HX streams up to 2K60 and DCI 4K at 15 fps over HDMI output. The device can be powered via an included USB power adapter or over PoE using the RJ45 port. With the latest firmware update, the converter supports NDI|HX, NDI|HX2, and NDI|HX3 stream decoding.
A companion Web UI allows web configuration from a wide variety of web browsers, such as the device name, source name, NDI and EDID identifiers, and other settings. It features a 1/4"-20 thread for camera mounting and can be used in the studio or in the field thanks to a compact and durable design.
HDMI Specific Features
- Decode NDI, RTSP, HTTP, RTMP Pull/Push, and TS streams over UDP/SRT/RTP
- H.264 and H.265 format support
- Customized EDID support
- Up to 2K60 NDI input stream
- Up to DCI 4K HDMI output signals
- NDI decoder converts from 2K to 2K60 output; from 4K to 4K15 output
- Supports NDI|HX, NDI|HX2, and NDI|HX stream decoding (ensure latest firmware)
- 96 kHz, 16-bit, 8-channel audio streams
Supported Web Browsers
- Microsoft Internet Explorer 11
- Microsoft Edge
- Mozilla Firefox version 61 and above
- Google Chrome version 49 and above
- Apple Safari 11.1 and above
- Opera 55.0.2994.44 and above
Video Decoding Features
- 150 megapixel decoding
- Tally indicators
- Audio meter and audio meter scale
- Audio gain, sample rate, and channel settings
- Center marker
- Safe area
- Video scaling, frame rate, and aspect ratio conversion
- Video color format conversion with YUV BT.601, YUV BT.709 color format support
- Auto or manual selection of input color format
- Remote control passthrough for PTZ camera
- Video frame rate conversion
- Video vertical and mirror flip
Supported Software
- Pro Convert encoder
- Magewell Bridge for NDI
Magewell NDI to HDMISpecs
Inputs / Outputs
| Video Inputs |

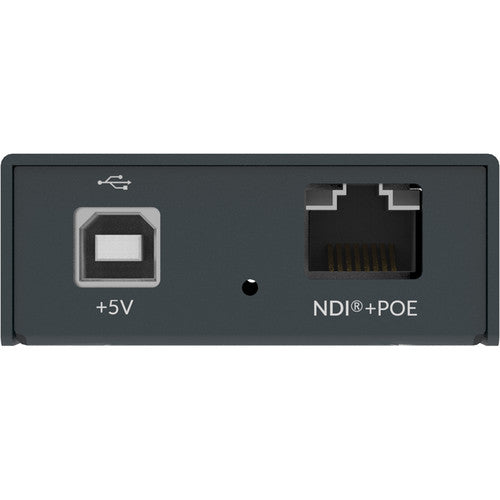

1x RJ45 (NDI) Female
|
| Video Outputs |

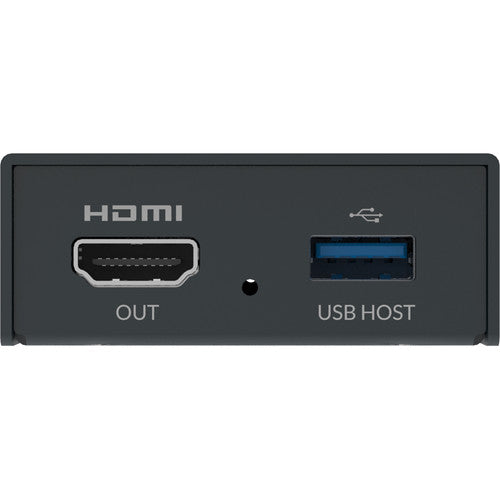

1x HDMI (HDMI 2.0/DVI) Female
|
| Other I/O |
1x USB-B Control Input (Shared Power)
1x USB-A Control Input |
Format Support
| Input Video Format |
RJ45 (4:4:4/4:2:2 RGB, YUV)
DCI 4K at 60 fps DCI 2K 60 fps |
| Output Video Format |
HDMI
DCI 4K at 15 fps DCI 2K 60 fps |
Standards
| EDID Support |
Manual Control
|
| HDR Support |
Not Specified by Manufacturer
|
Hardware
| Tally Light |
Yes
|
| Wireless |
No
|
Power
| Power I/O |
1x USB-B (5 VDC at 2.1 A) Input
|
| PoE Support |
PoE 802.3af
|
| Power Consumption |
Device: 1.1 A 5 W
|
Environmental
| Operating Temperature |
32 to 77°F / 0 to 45°C
|
| Storage Temperature |
-4 to 158°F / -20 to 70°C
|
| Operating Humidity |
5 to 90%
|
General
| Dimensions |
3.98 x 2.36 x 0.91" / 10.1 x 6 x 2.3 cm
|
Packaging Info
| Package Weight |
1.32 lb
|
| Box Dimensions (LxWxH) |
8.5 x 7.7 x 1.7"
|
