Magewell Pro Convert
Pro Convert for NDI to AIO
Pro Convert for NDI to AIO
Key Features
- NDI to HDMI/SDI Decoder
- Convert Live NDI to 1080p60 HDMI/SDI
- Decode 2K60 H.264/H.265 & AAC/MP3 Audio
- NDI|HX3 Support with Firmware Update
- Web UI with Decode Signal Info & More
- 48 kHz 8-Channel HDMI/SDI Audio Output
- Provide HTTP APIs
- USB / PoE Power
- 16-Position Rotary DIP Switch
- LED Status Indicators
Magewell Pro Convert Overview

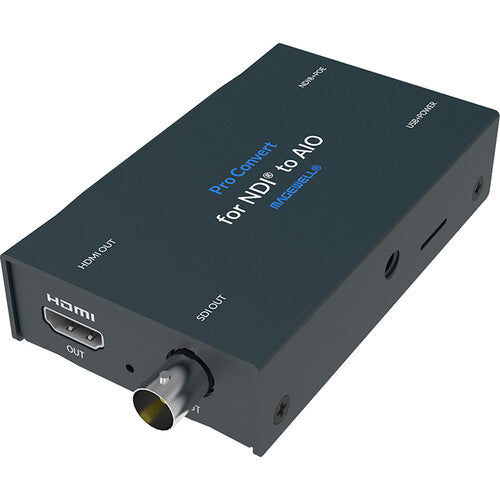

The Magewell Pro Convert for NDI to AIO converts a live NDI stream into HDMI and SDI outputs in up to 1080p60 resolution, decoding and outputting simultaneously. It decodes up to a 2K60 H.264/H.265 stream and AAC/MP3 audio. It supports NDI|HX3 with a new firmware update.

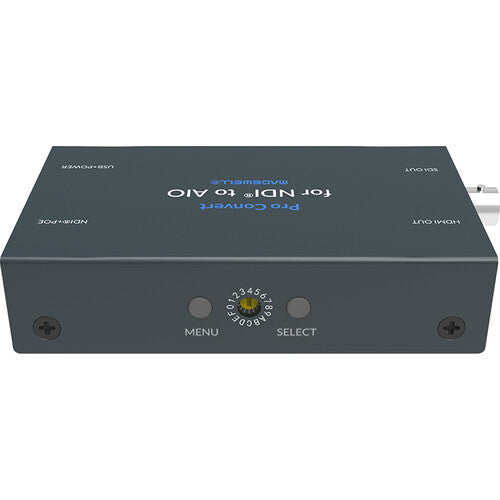

A Web UI provides comprehensive information about the decoded signal in real time while allowing you to adjust how the signal is decoded and output. Adjustments can be made to deinterlacing factors, resolution, audio gain, sample rate, channel mapping, the network connection, and OSD settings. Onboard controls allow you to pull up the menu and cycle through the menu options. A 16-position rotary dip switch lets you set the board index from 0 to F.
Power can be supplied over PoE or the USB port. LED indicators confirm the power and decoding status, including decoding errors. The Pro Convert provides all these capabilities in a compact design that can easily be integrated into your workflow. An SD card slot is provided on the side, but it is currently not active and there's no mention from Magewell about whether it's expected to be activated at a future time.
Additional Features
- Deliver video at the preferred video format according to the EDID of the connected monitor
- 48 kHz 8-channel HDMI/SDI audio output
- Decode up to 2K60 streams of Full NDI, NDI|HX, NDI|HX2, NDI|HX3, RTSP, HTTP, HLS, RTMP Pull/Push, and MPEG-TS over UDP/SRT/RTP protocols
- NDI 4.x support
- USB RNDIS/ECM
- Provide HTTP APIs
- 10/100/1000 Mb/s Ethernet, IEEE 802.3af PoE
- 1/4"-20 threaded hole
Magewell Pro ConvertSpecs
Inputs / Outputs
| Video Inputs |
1x RJ45 (HX/NDI/RTMP/RTSP/SRT)
|
| Audio Inputs |
No
|

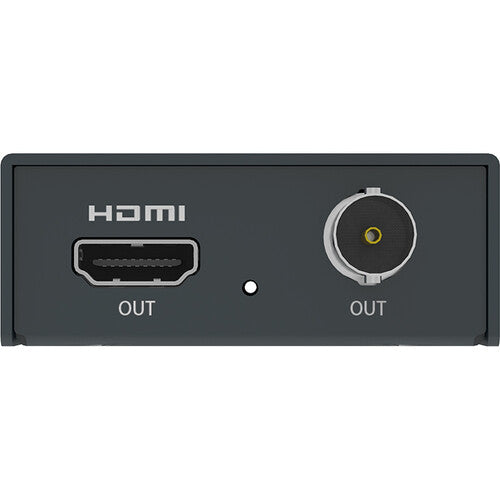

| Video Outputs |
1x HDMI (1.4)
1x BNC (3G-SDI) |
| Audio Outputs |
No
|
| Expansion Slots |
No
|
Format Support
| Input Video Format |
RJ45
DCI 2K at 60 fps |
| Output Video Format |
HDMI
1080p at 60 fps SDI 1080p at 60 fps |
| Embedded Audio |
HDMI/NDI/SDI
|
Standards
| Video Standard Compliance |
SMPTE 259M/292M/425M
ITU -R BT.601/BT.709 |
| HDR Support |
No
|
Hardware
| Wireless |
No
|
Power

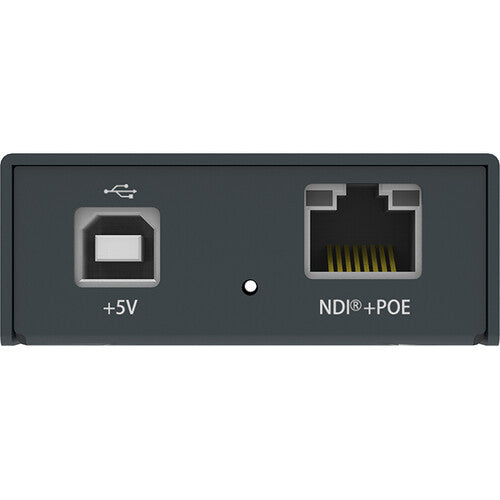

| Power I/O |
1x USB-B (5 VDC at 1 A) Input
|
| PoE Support |
PoE 802.3af
|
| Power Consumption |
Power Supply: 5 VDC at 2 A (5.5 W)
|
Environmental
| Operating Temperature |
32 to 104°F / 0 to 40°C
|
| Storage Temperature |
-4 to 158°F / -20 to 70°C
|
| Operating Humidity |
5 to 90%
|
General
| Dimensions |
4 x 2.4 x 0.9" / 10.1 x 6 x 2.3 cm
|
Packaging Info
| Package Weight |
1.28 lb
|
| Box Dimensions (LxWxH) |
8.4 x 4.2 x 2.6"
|
