Magewell Pro Convert

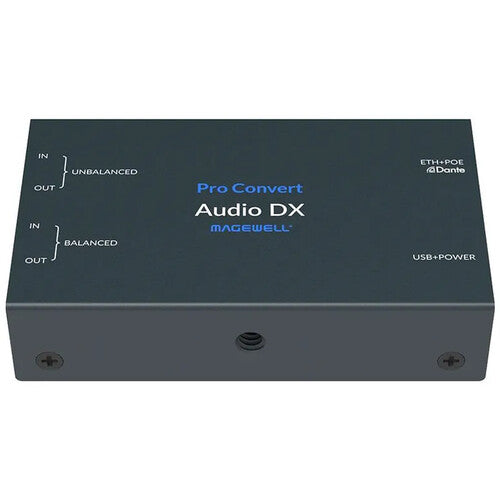

Pro Convert Audio DX - Bi-Directional Dante Audio Encoder/Decoder with Analog Stereo Input/Output

Pro Convert Audio DX - Bi-Directional Dante Audio Encoder/Decoder with Analog Stereo Input/Output

Key Features

  • IP Audio Conversion and Capture
  • Encode Analog Audio into Dante, NDI, SRT
  • Decode IP Audio into Dante, NDI, SRT
  • Capture Audio on Computer via USB
  • Up to 24-Bit / 96 kHz Audio

Magewell Pro Convert Audio DX Overview

The Magewell Pro Convert Audio DX offers extensive flexibility as an IP audio conversion and capture tool, enabling seamless audio conversion between Dante, NDI, and SRT in multiple directions. It serves as the perfect solution for bridging software, audio, and IP networks.

Features

  • Encode analog audio into Dante, NDI, and SRT
  • Decode IP audio streams into Dante, NDI, and SRT (analog output)
  • Capture audio on your desktop or Laptop via USB
  • Support for sample rates of 44.1, 48, 96 kHz, and 16-/24-bit sample depth
  • 1/4"–20 screw-mounting hole

Receiving/Input Features

  • 1 x 2-channel 3.5mm TRS unbalanced in
  • 1 x 2-channel 4.4mm TRRRS balanced in
  • 1 x 4-channel 24-bit/48 kHz USB Audio Class in
  • Receiving 1 x 8-channel 24-bit Dante streams
  • Receiving 1 x 4-channel 16-bit SRT network audio stream
  • Receiving 1 x 4-channel 16-bit NDI network audio stream
  • Support for PTP master/slave

Transmitting/Output Features

  • 1 x 2-channel 3.5mm TRS unbalanced out
  • 1 x 2-channel 4.4mm TRRRS balanced out
  • 1 x 4-channel 24-bit/48 kHz UAC out
  • Encoding 1 x 8-channel 24-bit Dante streams
  • Encoding 1 x 4-channel 16-bit SRT network audio stream
  • Encoding 1 x 4-channel 16-bit NDI network audio stream
  • Encoding 1 x 4-channel 16-bit RTSP network audio stream
  • Support for PTP master/slave

Magewell Pro Convert Audio DXSpecs

Inputs / Outputs

USB I/O
1 x USB-B 2.0 Female Input/Output
Audio I/O
1x 1/8" / 3.5 mm TRS Input
1x 1/8" / 3.5 mm TRS Output
1x 4.4 mm TRRS Input (Stereo)
1x 4.4 mm TRRS Output (Stereo)

Power

Power Source
USB
DC Input Power
5 VDC at 2.1 A
Power Consumption
5 W (Maximum)
Operating Current
1 A (Maximum)

Environmental

Operating Temperature
32 to 104°F / 0 to 40°C
Operating Humidity
5 to 90% ()
Storage Temperature
-4 to 158°F / -20 to 70°C

Physical

Mounting
1x 1/4"20 Thread
Color
Black
Dimensions
4 x 2.4 x 0.9" / 10.1 x 6 x 2.3 cm
Weight
Not Specified by Manufacturer

Packaging Info

Package Weight
1.63 lb
Box Dimensions (LxWxH)
9.4 x 6.2 x 2.6"
