Pro Capture SDI 4K Plus

Key Features

2x 3G-SDI, 1x 6G-SDI & 1x 12G-SDI Inputs
PCIe x4 Interface
Supports up to 4096 x 2160 DCI 4K Video
10-Bit / 8-Bit Processing
Multiple Color-Space Support
Cropping, Scaling, De-Interlacing
Frame-Rate & Aspect-Ratio Conversion
macOS, Windows, and Linux Compatible
DirectShow, DirectKS, V4L2 Compatible
LP Bracket & 4 x BNC Cables Included

Magewell Pro Capture SDI 4K Plus Overview

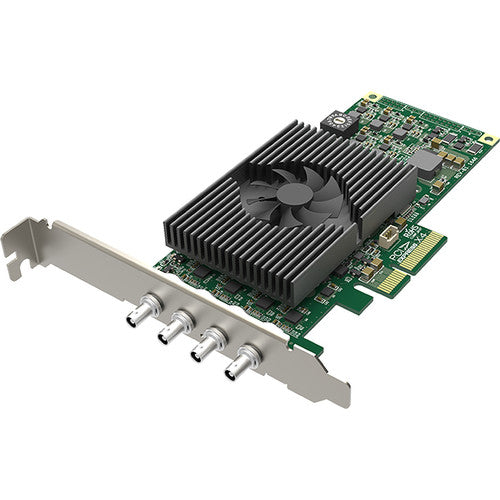

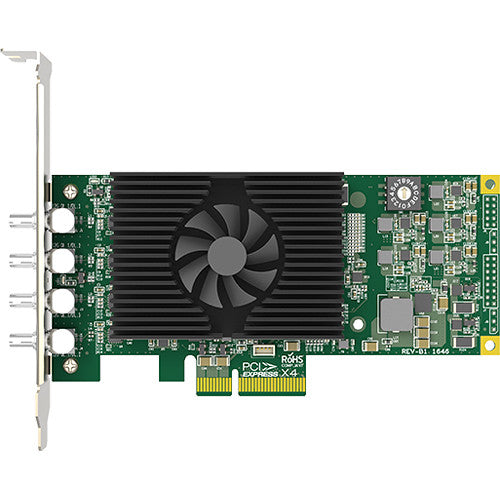

Capture 4K resolution video using the low-profile Pro Capture SDI 4K Plus Capture Card from Magewell. This PCI Express x4 capture card is compatible with DCI 4K and UHD video formats up to 4096 x 2160, and features four high-definition BNC ports out of which two support SDI formats up to 3G-SDI, one up to 6G-SDI, and one up to 12G-SDI. Capture uncompressed video from a camera or switcher's SDI output on your computer for recording, editing, or streaming.

The Magewell Pro Capture SDI 4K Plus is compatible with Windows, macOS, and Linux systems. Extraction of audio-formation and channel-status data is supported as are closed caption and multiple color spaces in 8- and 10-bit formats. Video processing features include frame-rate conversion, cropping, scaling, de-interlacing, and aspect-ratio conversion. Multiple Magewell 11180 cards can be used and numbered in one system.

SDI-Specific Features

Integrated cable equalizer supporting cable lengths up to 754.6' for HD signals
SD, HD, 3Ga, 3Gb, 3Gb-DL, 3Gb-DS, 6G, and 12G support
2K (2048 x 1080) & 4K (4096 x 2160) modes
RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2 color sampling
10/12-bit color depth
Extraction of SMPTE 352 payload identifier
Up to eight mono audio channels at 48 kHz
Extraction of audio formation information and channel status data supported
Closed caption support

Video Capture Format Support

Image-capture resolutions up to 4096 × 2160 pixels
Capture frame rates up to 144 fps (actual capture frame rate can be limited by PCIe bandwidth and image resolution)
4:2:0 8-bit capture formats: NV12, I420, YV12
4:2:2 8-bit capture formats: YUY2, YUYV, UYVY
4:4:4 8-bit capture formats: V308, IYU2, V408, BGR24, BGR32
4:4:4 10-bit capture formats: V410, Y410
Additional capture formats are supported via Capture SDK for DirectKS

Video Processing Features

Two video processing pipelines with ~720 MP/s processing bandwidth for each one
Full 10-bit video processing
Video cropping and scaling
Video de-interlacing:
Weave
Blend top & bottom field
Top field only
Bottom field only
Video aspect-ratio conversion:
Auto or manual selection of input aspect ratio
Auto or manual selection of capture aspect ratio
Three aspect-ratio conversion modes: Ignore (Anamorphic), Cropping or Padding
(Letterbox or Pillarbox)
Video color format conversion:
Auto or manual selection of input color format & quantization range
Auto or manual selection of capture color format, quantization range, and saturation range
Supports RGB, YCbCr 601, YCbCr 709, YCbCr 2020 color formats
Supports limited or full quantization range
Supports limited, full, and 'extended gamut' saturation range
Video frame-rate conversion
Video OSD composition:
Supports PNG OSD image (up to 4096 × 2160)
Supports dynamic loading of RGBA OSD image via SDK

Magewell Pro Capture SDI 4K PlusSpecs

Inputs / Outputs

System Connection	PCIe 2.0 x4

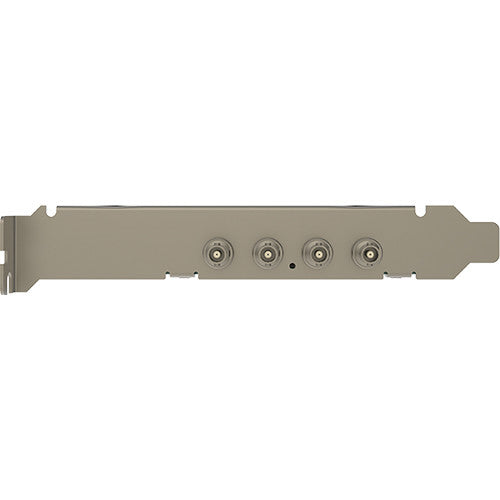

Video Inputs	2x BNC (3G-SDI) Female 1x BNC (6G-SDI) Female 1x BNC (12G-SDI) Female
Audio Inputs	No

Format Support

Input Video Format	SDI (10/12-Bit 4:4:4/4:2:2 RGB, YCC) DCI 4K
Embedded Audio	SDI: 8-Channel

Hardware

OS Compatibility	Windows 7 Windows 8 Windows 8.1 Windows 10 Windows Server Linux 12.4 Linux 14.4 Linux 16.4 Linux 17.4 Linux 17.10 Linux 18.4 Linux 6.5 Linux 7 Linux 25 Linux 26 Linux 27 Linux 2.6.35 or Later macOS 10.9 macOS 10.10 macOS 10.11 macOS 10.12 or Later
Power Consumption	10.9 W

Environmental

Operating Temperature	32 to 104°F / 0 to 40°C
Storage Temperature	-4 to 158°F / -20 to 70°C
Operating Humidity	5 to 90%

General

Dimensions

5.51 x 2.71" / 140 x 68.88 mm

Packaging Info

Package Weight	0.85 lb
Box Dimensions (LxWxH)	8 x 6.5 x 3"
