Pro Capture MINI SDI

Key Features

Single-Channel SDI Capture Card
2048 x 1080 Video & Embedded Audio
Compatible with Windows, Mac & Linux
PCIe Gen2 x1 Host Interface
10-Bit Video Processing
Cropping, Scaling, De-Interlacing
Frame Rate and Aspect Ratio Conversion

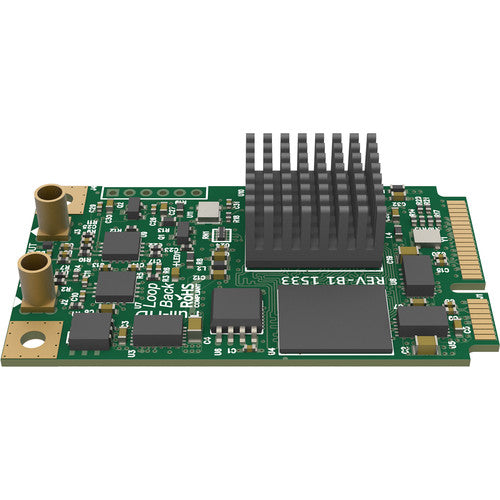

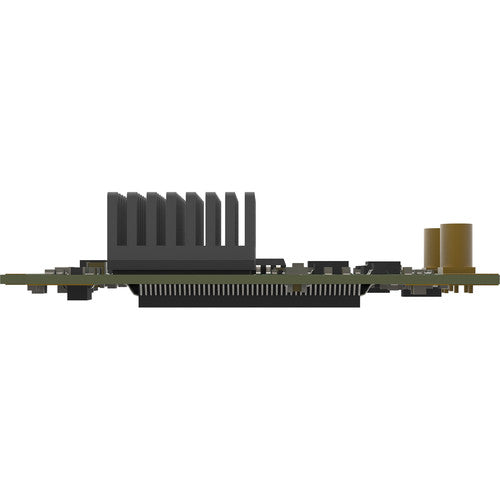

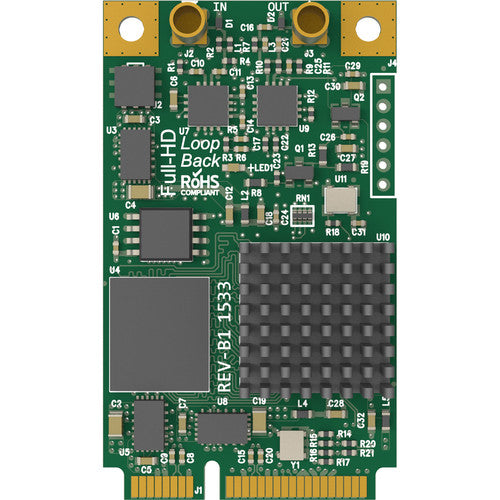

Magewell Pro Capture Mini SDI SH Overview

The Pro Capture Mini SDI SH Capture Card with Small Heat Sink from Magewell is a mini PCIe add-on card that allows for capturing a single channel of SD/HD/3G-SDI and SD/HD/3G-SDI loopback. The card supports extraction of SMPTE 352 payload identifier and is capable of performing various video processing features, including cropping, scaling, de-interlacing, aspect ratio conversion, color format conversion, video frame rate conversion, and video OSD composition.

SDI Features

Integrated cable equalizer supporting cable lengths up to 755' for HD signals
Supports SD/HD/3Ga/3Gb/3Ga-DL/3Gb-DS standards
Supports 2K (2048 x 1080) mode
Supports RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2 color sampling
Supports 10/12-bit color depth
Support for up to 8 (mono) audio channels at 48 kHz (channels 1 to 8 from the 16 available in the SDI spec)
Supports extraction of audio formation information and channel status data
Limited support of 3Gb-DS (only the first stream can be captured)
Limited support for capture of the first link of dual link interfaces (YCbCr 4:2:2 10-bit 1080p 50/59.94/60 is captured as 1080i 50/59.94/60; YCbCr 4:4:4 10-bit is captured as 4:2:2; RGB 4:4:4: R/B sub-sampled)

Video Processing Features

Two video processing pipelines with 360 MP/s processing bandwidth for each one
Full 10-bit video processing
Wave, blend top and bottom field, top field only, and bottom field only de-interlacing modes
Auto or manual selection of input and output aspect ratio
Three aspect ratio conversion modes (ignore (anamorphic), cropping or padding (letterbox or pillarbox))
Auto or manual selection of input color format and quantization range
Auto or manual selection of output color format, quantization range, and saturation range
Supports RGB, YCbCr 601, YCbCr 709, YCbCr 2020 color formats
Supports limited or full quantization range
Supports limited, full, and extended gamut saturation range
Supports PNG OSD image (up to 2048 x 2048)
Supports dynamic loading of RGBA OSD image via SDK

Multiple Cards Per System

Supports multiple cards in one system
On-board rotary switch to set card number, with 16 positions from 0 to F
System hardware device tree will display 01: Pro Capture AIO when rotary switch is set to 1, and so on
The video and audio device names displayed in your software will include the card number (set by the rotary switch)

Multiple Capture Streams

Unlimited capture streams for any one input channel
Independent cropping, aspect ratio, color format, resolution, frame rate, de-interlacing, and color adjustment settings for each individual stream

Ultra-Low Latency Support

Latency of 64 video lines
Partial notification mode in SDK

Timestamp & AV Synchronization

Hardware-based 100ns high-resolution clock
Audio frames (192 audio samples) & video frames are stamped with hardware clock
Hardware clock can be synchronized across cards (via SDK)

Video Output SG-DMA

Supports auto detection of Intel tiled GPU surface
Supports DirectGMA for AMD video adapter chipsets
Supports GPUDirect for NVIDIA video adapter chipsets
400 MB/s per channel DMA bandwidth in PCIe 2.0 system and 200 MB/s per channel DMA bandwidth in PCIe 1.0 system

SDK

Pro Capture SDK for DirectShow for easy integration (Windows)
Pro Capture SDK for DirectKS for maximum flexibility & performance (Windows)

Windows Driver Tweaks

All options can be controlled by three levels of registry key: global level, product level, and device level
Video, audio, crossbar filter names can be customized via registry keys

Firmware Upgrade

Multiple cards in one system can be upgraded simultaneously
Cards can be upgraded without a system power shutdown when it is not in use
If power off or system break down occur when the firmware is being upgraded, it will automatically restore to the initial version (this function is only available for firmware version 1.21 and above)

Magewell Pro Capture Mini SDI SHSpecs

Input Interface	MMCX (SD/HD/3G SDI)
Output Interface	PCIe Gen2 x1 MMCX (SDI Loopback)
Supported OS	Windows 7/8/8.1/10/2008/2008 R2/2012 (x86 & x64) Linux (Based on V4L2, Supports x86, x64, and Arm Architecture) macOS X
Supported APIs	Windows: DirectShow, DirectKS, Wave API/DirectSound/WASAPI Linux: V4L2, ALSA
Supported Software	VLC VirtualDub OBS XSplit vMix VidBlaster Wirecast Microsoft Media Encoder Adobe Flash Media Encoder Any Other DirectShow/V4L2 Encoding/Streaming Software
Video Output Format	Supports up to 2048 x 2048 Output Resolutions Supports Output Frame Rates up to 144 fps (Actual Output Frame Rate Can Be Limited by PCIe Bandwidth and Image Resolution) Supports 4:2:0 8-Bit Output Formats (NV12, I420, YV12) Supports 4:2:2 8-Bit Output Formats (YUY2, YUYV, UYVY) Supports 4:4:4 8-Bit Output Formats (V308, IYU2, V408, BGR24, BGR32) Supports 4:4:4 10-Bit Output Formats (V410, Y410) More Output Formats Are Supported via Pro Capture SDK for DirectKS
Video Output SG-DMA	400 MB/s per Channel DMA Bandwidth in PCIe 2.0 System 200 MB/s per Channel DMA Bandwidth in PCIe 1.0 System
LED Indicator	Status LEDs Indicate the Working State of Each Channel; Idle, Input Signal Locked, Memory Failed, or FPGA Configuration Failed
Power Consumption	Max Current at 3.3 V: Approximately 1 A Max Power Consumption: Approximately 3.3 W
Operating Temperature	32 to 104°F / 0 to 40°C
Storage Temperature	-4 to 158°F / -20 to 70°C
Relative Humidity	5 to 90% Non-Condensing
Form Factor	Mini PCIe Add-On Card 1.2 x 2.01" / 3.0 x 5.1 cm

Packaging Info

Package Weight	0.35 lb
Box Dimensions (LxWxH)	8.6 x 7.7 x 1.6"
