Magewell Capture

Pro Capture Hexa CVBS

Key Features

6 x Composite A/V Input Channels
PCIe x1 Interface
Supports up to 720 x 576 Resolution
8-Bit Processing
Multiple Capture Streams
Cropping, Scaling, De-Interlacing
Frame-Rate & Aspect-Ratio Conversion
Windows and Linux Compatible
DirectShow, DirectKS, V4L2 Compatible
LP Bracket & Breakout Cable Included

Magewell 11250 Overview

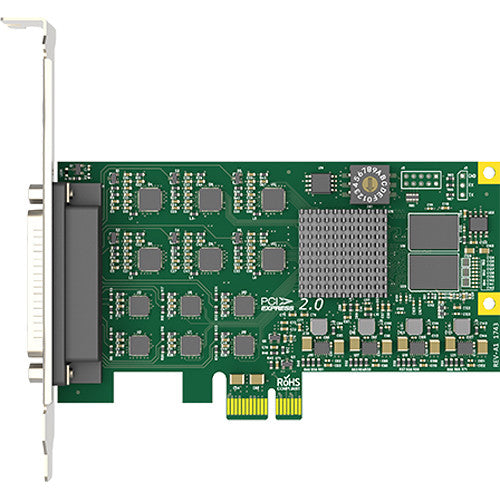

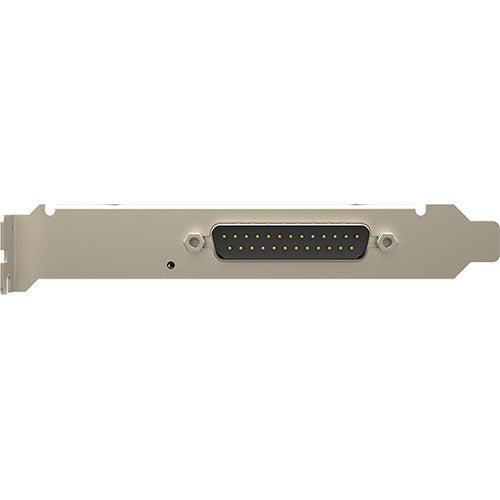

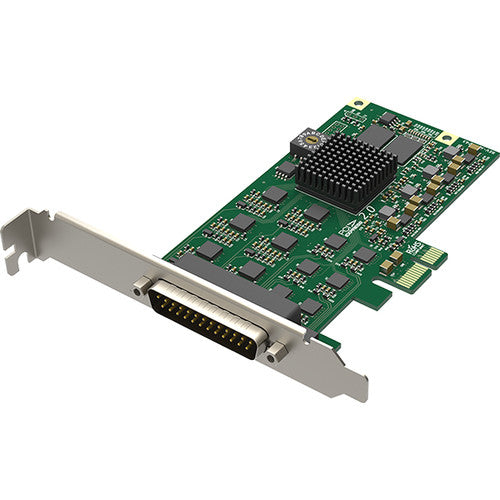

Capture up to six channels of composite A/V with the low-profile 6-Channel Pro Capture Hexa CVBS Capture Card from Magewell. This PCI Express x1 capture card is compatible with composite video formats up to 720 x 576. It is equipped with a 25-pin Sub D port for connecting the included breakout cable.

The 6-Channel Pro Capture Hexa CVBS Capture Card is compatible with Windows and Linux systems. Multiple color spaces in 8-bit formats are supported. Video processing features include frame-rate conversion, cropping, scaling, de-interlacing, and aspect-ratio conversion. Multiple Magewell 11250 cards can be used and numbered in one system.

Composite-Specific Features

Support for NTSC, PAL, and SECAM standards
Auto detection of video input standard

Video Capture Format Support

Image-capture resolutions up to 720 x 576 pixels
Capture frame rates up to 30 fps
4:2:0 8-bit capture formats: NV12, I420, YV12
4:2:2 8-bit capture formats: YUY2, YUYV, UYVY
4:4:4 8-bit capture formats: V308, IYU2, V408, BGR24, BGR32
Additional capture formats are supported via Capture SDK for DirectKS

Video Processing Features

Two video processing pipelines with ~180 MP/s processing bandwidth for each one
Video cropping and scaling
Video de-interlacing:
Weave
Blend top & bottom field
Top field only
Bottom field only
Video aspect-ratio conversion:
Auto or manual selection of input aspect ratio
Auto or manual selection of capture aspect ratio
Three aspect-ratio conversion modes: Ignore (Anamorphic), Cropping or Padding
(Letterbox or Pillarbox)
Video color-format conversion:
Auto or manual selection of input color format & quantization range
Auto or manual selection of capture color format, quantization range & saturation range
Supports RGB, YCbCr 601, YCbCr 709 color formats
Supports limited or full quantization range
Supports limited, full & 'extended gamut' saturation range
Video frame-rate conversion
Video OSD composition:
Supports PNG OSD image (up to 720 x 576)
Supports dynamic loading of RGBA OSD image via SDK

Magewell 11250Specs

Inputs / Outputs

System Connection	PCIe 2.0 x1
Video Inputs	1x DB-25 (Composite) Male
Audio Inputs	No

Format Support

Input Video Format

Composite (8-Bit 4:4:4/4:2:2/4:2:0 RGB, YCC)
576p

Hardware

OS Compatibility	Windows 7 Windows 8 Windows 8.1 Windows 10 Windows Server Linux 12.4 Linux 14.4 Linux 16.4 Linux 17.4 Linux 17.10 Linux 18.4 Linux 6.5 Linux 7 Linux 25 Linux 26 Linux 27 Linux 6.5 Linux 2.6.35
Power Consumption	6.12 W

Environmental

Operating Temperature	32 to 104°F / 0 to 40°C
Storage Temperature	-4 to 158°F / -20 to 70°C
Operating Humidity	5 to 90%

General

Dimensions

4.65 x 2.71" / 118.16 x 68.88 mm

Packaging Info

Package Weight	0.785 lb
Box Dimensions (LxWxH)	8.6 x 7.8 x 1.6"
