Magewell Capture

Pro Capture AIO 4K Plus

Pro Capture AIO 4K Plus

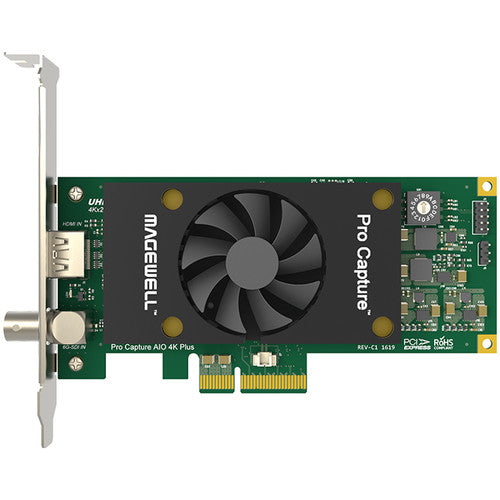

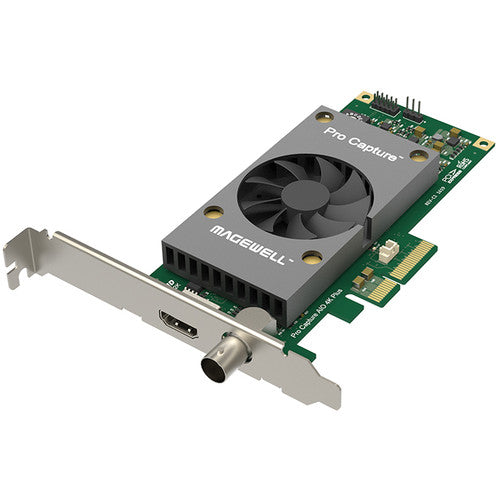

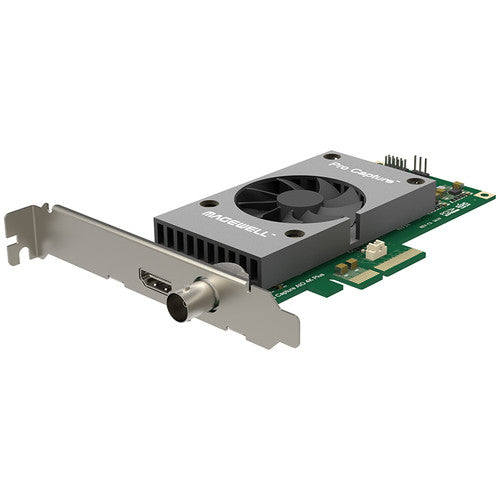

Magewell Pro Capture AIO 4K Plus Overview

The Pro Capture AIO 4K Plus Capture Card from Magewell is a low-profile PCIe x4 add-on card that allows for capturing a single channel of SDI + embedded audio and HDMI + embedded audio. The card supports extraction of audio formation information and channel status data, video timing information, 3D format information, and Sony/Canon DSLR timecode. It is also capable of performing various video processing features, including cropping, scaling, deinterlacing, aspect ratio conversion, color format conversion, video frame rate conversion, and video OSD composition.

Input Features

  • Supports auto-scanning of video input sources when there is no signal input to the currently selected input source as well as manual selection of video input source
  • Supports auto as well as manual selection of linked (embedded) audio input source when the video input source changes
  • Supports standard crossbar based on video input source selection
  • Supports input video resolutions up to 4096 x 2160 pixels

HDMI Features

  • 594 MHz HDMI receiver
  • Adaptive HDMI equalizer
  • Supports customized EDID
  • Supports extraction of AVI/Audio/SPD/MS/VS/ACP/ISRC1/ISRC2/Gamut InfoFrames
  • Full colorimetry support
  • Supports 8/10/12-bit color depths
  • Supports RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2 color sampling
  • Supports up to 8-channel IEC60958/IEC61937 audio streams
  • Supports side-by-side half, top-and-bottom, frame packing 3D mode

SDI Features

  • Integrated cable equalizer supporting cable lengths up to 755' for HD signals
  • Supports SD/HD/3Ga/3Gb/3Ga-DL/3Gb-DS standards
  • Supports 2K (2048 x 1080) mode
  • Supports RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2 color sampling
  • Supports 10/12-bit color depth
  • Supports extraction of SMPTE 352 payload identifier
  • Supports up to 8 (mono) audio channels at 48 kHz (channels 1 to 8 from the 16 available in the SDI spec)
  • Supports extraction of audio formation information and channel status data
  • Limited support of 3Gb-DS (only the first stream can be captured)
  • Limited support for capture of the first link of dual link interfaces (YCbCr 4:2:2 10-bit 1080p 50/59.94/60 is captured as 1080i 50/59.94/60; YCbCr 4:4:4 10-bit is captured as 4:2:2; RGB 4:4:4: R/B sub-sampled)

Video Processing Features

  • Two video processing pipelines with 720 MP/s processing bandwidth
  • Full 10-bit video processing
  • Wave, blend top and bottom field, top field only, and bottom field only deinterlacing modes
  • Auto or manual selection of input and output aspect ratio
  • Three aspect ratio conversion modes (ignore (anamorphic), cropping or padding (letterbox or pillarbox))
  • Auto or manual selection of input color format and quantization range
  • Auto or manual selection of output color format, quantization range, and saturation range
  • Supports RGB, YCbCr 601, YCbCr 709, YCbCr 2020 color formats
  • Supports limited or full quantization range
  • Supports limited, full, and extended gamut saturation range
  • Supports PNG OSD image (up to 2048 x 2048)
  • Supports dynamic loading of RGBA OSD image via SDK

Multiple Cards Per System

  • Supports multiple cards in one system
  • On-board rotary switch to set card number, with 16 positions from 0 to F
  • System hardware device tree will display 01: Pro Capture AIO when rotary switch is set to 1, and so on
  • The video and audio device names displayed in your software will include the card number (set by the rotary switch)

Multiple Capture Streams

  • Unlimited capture streams for any one input channel
  • Independent cropping, aspect ratio, color format, resolution, frame rate, deinterlacing, and color adjustment settings for each individual stream

Ultra-Low Latency Support

  • Latency of 64 video lines
  • Partial notification mode in SDK

Timestamp & AV Synchronization

  • Hardware-based 100ns high-resolution clock
  • Audio frames (192 audio samples) & video frames are stamped with hardware clock
  • Hardware clock can be synchronized across cards (via SDK)

Video Output SG-DMA

  • Supports auto detection of Intel tiled GPU surface
  • Supports DirectGMA for AMD video adapter chipsets
  • Supports GPUDirect for NVIDIA video adapter chipsets
  • 1600 MB/s per channel DMA bandwidth in PCIe 2.x system and 800 MB/s per channel DMA bandwidth in PCIe 1.x system

SDK

  • Pro Capture SDK for DirectShow for easy integration (Windows)
  • Pro Capture SDK for DirectKS for maximum flexibility & performance (Windows)

Windows Driver Tweaks

  • All options can be controlled by three levels of registry key: global level, product level, and device level
  • Video, audio, crossbar filter names can be customized via registry keys

Firmware Upgrade

  • Multiple cards in one system can be upgraded simultaneously
  • Cards can be upgraded without a system power shutdown when it is not in use
  • If power off or system break down occur when the firmware is being upgraded, it will automatically restore to the initial version (this function is only available for firmware version 1.21 and above)

Magewell Pro Capture AIO 4K PlusSpecs

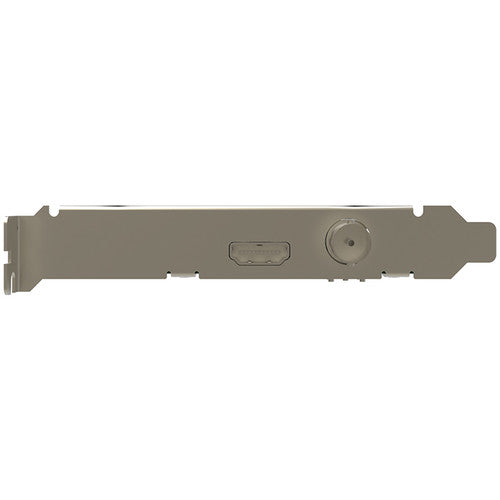

Input Interface
1 x HDMI (DVI-D 1.0 and HDMI 2.0)
1 x BNC (SD/HD/3G/6G SDI)
Output Interface
PCIe Gen2 x4
Supported OS
Windows 7/8/8.1/10/2008/2008 R2/2012 (x86 & x64)
Linux (based on V4L2, supports x86, x64, and arm architecture)
Mac OS X
Supported APIs
Windows: DirectShow, DirectKS, Wave API/DirectSound/WASAPI
Linux: V4L2, ALSA
Supported Software
VLC
VirtualDub
OBS
XSplit
vMix
VidBlaster
Wirecast
Microsoft Media Encoder
Adobe Flash Media Encoder
Any other DirectShow/V4L2 encoding/streaming software
Video Output Format
Supports up to 4096 x 2160 output resolutions
Supports output frame rates up to 144 fps (actual output frame rate can be limited by PCIe bandwidth and image resolution)
Supports 4:2:0 8-bit output formats (NV12, I420, YV12)
Supports 4:2:2 8-bit output formats (YUY2, YUYV, UYVY)
Supports 4:4:4 8-bit output formats (V308, IYU2, V408, BGR24, BGR32)
Supports 4:4:4 10-bit output formats (V410, Y410)
More output formats are supported via Pro Capture SDK for DirectKS
Video Output SG-DMA
1600 MB/s per channel DMA bandwidth in PCIe 2.x system
800 MB/s per channel DMA bandwidth in PCIe 1.x system
LED Indicator
Status LEDs indicate the working state of each channel; idle, input signal locked, memory failed, or FPGA configuration failed
Power Consumption
Not specified by the manufacturer
Operating Temperature
32 to 104°F (0 to 40°C)
Storage Temperature
-4 to 158°F (-20 to 70°C)
Relative Humidity
5 to 90% non-condensing
Form Factor
Low profile PCIe x4 add-on card
5.5 x 2.7" (14.0 x 6.9 cm) without PCI bracket

Packaging Info

Package Weight
0.6 lb
Box Dimensions (LxWxH)
8.7 x 7.6 x 1.6"
