Lumens
MS-10 Video Soundbar with Auto-framing ePTZ, 5x Beamforming Mic Array and Speakers
MS-10 Video Soundbar with Auto-framing ePTZ, 5x Beamforming Mic Array and Speakers
Key Features
- Up to UHD 4K Video
- 120° Diagonal Field of View
- USB-B Host Connection, Ethernet Port
- Wall or Under-Monitor Mounting
- Five Beamforming Microphones
- 16.4' Pickup Range
- Delivers Ethernet Connection to Host
- Remote Control and Status Light
- Built-In Speaker

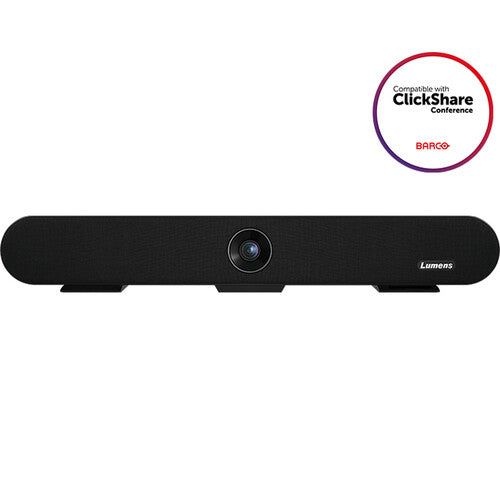

- Supports Barco Clickshare
Lumens MS-10 Overview

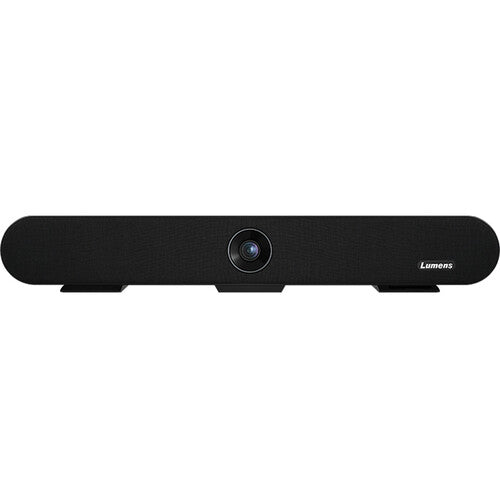

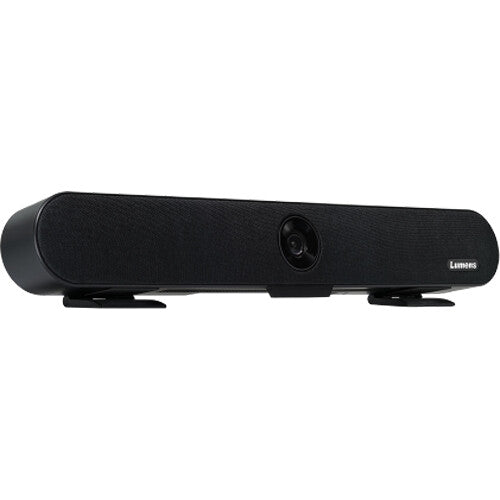

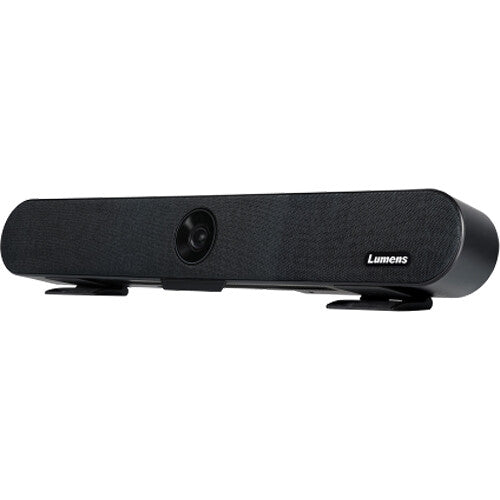

The Lumens MS-10 All-In-One UHD 4K Video Soundbar equips your meeting room with a camera, microphone array, and speaker system for all of your conferencing needs. Capture up to UHD 4K video thanks to the embedded camera and clear sound thanks to the five beamforming microphones. A 20W speaker delivers sound throughout a small to medium-sized meeting space. A USB-B host connection delivers the MS-10's video feed to a monitor of your choice. Included mounting accessories secure the soundbar to the wall or below your TV display.
High-Quality Video
The MS-10 features a 1/2.8" 8.29MP CMOS sensor capable of capturing UHD 4K video with natural color reproduction. It is designed for use right out of the box and performs well in low-light conditions to give remote participants improved visuals.
Wide Field of View, Auto-Framing
Auto-framing technology identifies participants and adjusts the zoom angle to incorporate all speakers. A 120° diagonal field of view and 4x zoom ensures visibility of both groups and individual people, automatically. Focus on subjects easily from a minimum distance of 1.6' away.
Accurate Voice Pickup
Five beamforming microphones are built-in to the MS-10 and feature both echo cancellation and noise suppression for improved voice pickup. The microphones can pickup audio from up to 16.4' away and have a 50 Hz to 8 kHz frequency response.
Data Bridging Interface
When linked to the local network via Ethernet, MS-10 acts as a bridge to deliber Internet connectivity to the host laptop over USB. The compatible PC or Mac computer running the video conferencing software does not need to rely on Wi-Fi for streaming, nor requires a separate Ethernet cable. This reduces cable runs and delivers reliable two-way communication.
Remote Control, Status Light
Using the included remote, control volume, PTZ movements, and mute both audio and video. Protect your team's privacy with one touch and see your status with the onboard light. When green the MS-10 is in standby mode, red is audio mute, and blue is in use.
Lumens MS-10Specs
Key Specs
| Resolution and Frame Rate | |
| Image Sensor | |
| Sensor Resolution | |
| System Connection |
Sensor
| Resolution and Frame Rate | |
| Number of Lenses | |
| Image Sensor | |
| Sensor Resolution | |
| Aperture | |
| Field of View | |
| Zoom |
General
| System Connection | |
| Other I/O | |
| Focus Type | |
| Bluetooth | |
| Wi-Fi | |
| Power Source | |
| Low-Light Correction | |
| Input Power | |
| OS Compatibility | |
| OS Compatibility | |
| Supported Formats/Protocols |
Microphone
| Microphone | |
| Pickup Range | |
| Frequency Range | |
| Sensitivity | |
| Signal-to-Noise Ratio (SNR) | |
| Microphone Features | |
| Cancellation Technology |
Speakers
| Built-In Speakers | |
| Maximum Sound Pressure Level (SPL) | |
| Frequency Response |
Physical
| Privacy Shutter | |
| Security | |
| Attachment Method | |
| Built-In Light | |
| Dimensions (W x H x D) | |
| Weight |
Packaging Info
| Package Weight | |
| Box Dimensions (LxWxH) |
