Magewell Capture
Eco Capture quad SDI M.2
Eco Capture quad SDI M.2
Key Features
- 4 x MMCX SD/HD/3G/2K-SDI Inputs
- M.2 2280 Type M Interface (PCIe x4 )
- Supports up to 2048 x 1080 Video Input
- 10-Bit 4:4:4 Video Processing
- Multiple Color-Space Support
- Cropping, Scaling, De-Interlacing
- Frame-Rate & Aspect-Ratio Conversion
- Windows and Linux Compatible
- DirectShow, DirectKS, V4L2 Compatible
- 4 x MMCX to BNC Cables Included

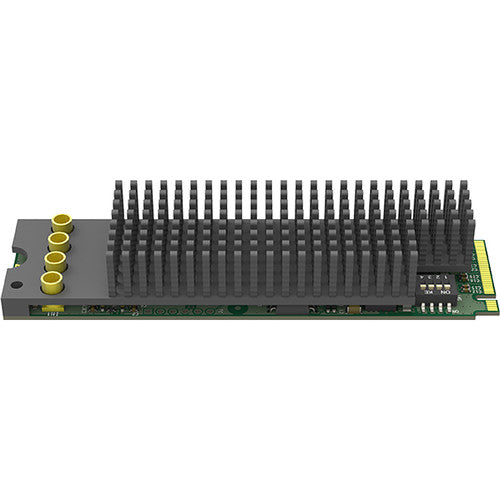

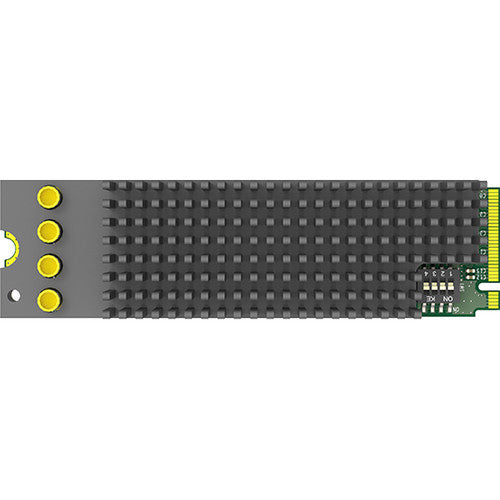

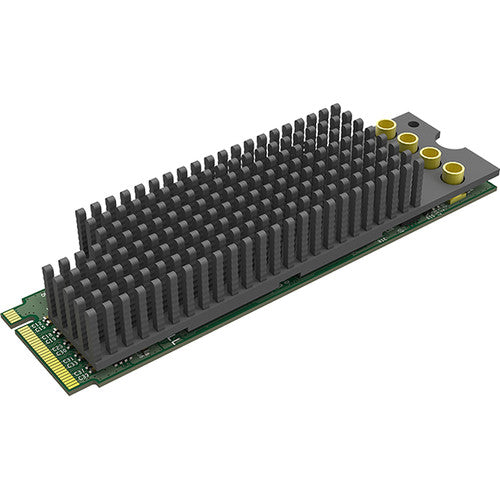

Magewell Eco Capture Quad SDI M.2 Overview
Capture four channels of SD/HD/3G/2K-SDI video plus embedded audio using the Eco Capture Quad SDI M.2 Capture Card from Magewell. This M.2 2280 capture card is compatible with video formats up to 2048 x 1080, and features four MMCX ports that support SD/HD/3G/2K-SDI input via the four included MMCX to BNC cables. Capture uncompressed video from a camera or switcher's SDI output on your computer for recording, editing, or streaming.
The Eco Capture Quad SDI M.2 Capture Card is compatible with Windows and Linux systems. Extraction of audio-formation and channel-status data is supported, as are closed caption and multiple color spaces in 8-bit formats. Video processing features include frame-rate conversion, cropping, scaling, de-interlacing, and aspect-ratio conversion. Multiple Magewell 11540 cards can be used and numbered in one system.
SDI-Specific Features
- Integrated cable equalizer supporting cable lengths up to 754.6' for HD signals
- SD, HD, 3Ga, 3Gb, 3Gb-DL, and 3Gb-DS support
- 2K (2048 x 1080) mode
- RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2 color sampling
- 10-/12-bit color depth
- Extraction of SMPTE 352 payload identifier
- Up to eight mono audio channels at 48 kHz
- Extraction of audio formation information and channel status data supported
- Closed caption support
Video Capture Format Support
- Image capture resolutions up to 2048 x 1080 pixels
- Capture frame rates up to 144 fps (actual capture frame rate can be limited by PCIe bandwidth and image resolution)
- 4:2:0 8-bit capture formats: NV12, I420, YV12
- 4:2:2 8-bit capture formats: YUY2, YUYV, UYVY
- 4:4:4 8-bit capture formats: V308, IYU2, V408, BGR24, BGR32
- Additional capture formats are supported via Capture SDK for DirectKS
Video Processing Features
- Video processing pipelines with ~180 MP/s processing bandwidth
- 10-bit 4:4:4 video processing
- Video cropping and scaling
- Video de-interlacing:
Weave
Blend top & bottom field
Top field only
Bottom field only - Video aspect-ratio conversion:
Auto or manual selection of input aspect ratio
Auto or manual selection of capture aspect ratio
Three aspect-ratio conversion modes: Ignore (Anamorphic), Cropping or Padding
(Letterbox or Pillarbox) - Video color-format conversion:
Auto or manual selection of input color format & quantization range
Auto or manual selection of capture color format, quantization range, and saturation range
Supports RGB, YCbCr 601, YCbCr 709, YCbCr 2020 color formats
Supports limited or full quantization range
Supports limited, full, and 'extended gamut' saturation range - Video frame-rate conversion
Magewell Eco Capture Quad SDI M.2Specs
Inputs / Outputs
| System Connection |
PCIe 2.0 (M.2 2280)
|
| Video Inputs |
4x BNC (3G-SDI) Female
|
| Audio Inputs |
No
|
Format Support
| Input Video Format |
SDI (10/12-Bit 4:4:4/4:2:2 RGB, YCC)
DCI 2K |
| Embedded Audio |
SDI
|
Hardware
| OS Compatibility |
Windows 7
Windows 8 Windows 8.1 Windows 10 Windows Server Linux 12.4 Linux 14.4 Linux 16.4 Linux 17.4 Linux 17.10 Linux 18.4 Linux 6.5 Linux 7.2 Linux 25 Linux 26 Linux 6.5 |
| Power Consumption |
7.16 W
|
Environmental
| Operating Temperature |
32 to 104°F / 0 to 40°C
|
| Storage Temperature |
-4 to 158°F / -20 to 70°C
|
| Operating Humidity |
5 to 90%
|
Packaging Info
| Package Weight |
0.395 lb
|
| Box Dimensions (LxWxH) |
8.5 x 7.8 x 1.6"
|
