Eco Capture HDMI 4K M.2 - with a modified connector

Key Features

Capture DCI 4K into PC/Linux Computers
Small Form Factor M.2/PCIe 2.0 Interface
Capable of 24/7 Operation
FPC Connector, FPC-to-HDMI Adapter
Resolution Scaling, Time Stamp
High-Fidelity Processing Pipeline
Various Output Color Spaces & More
LED Status Indicator

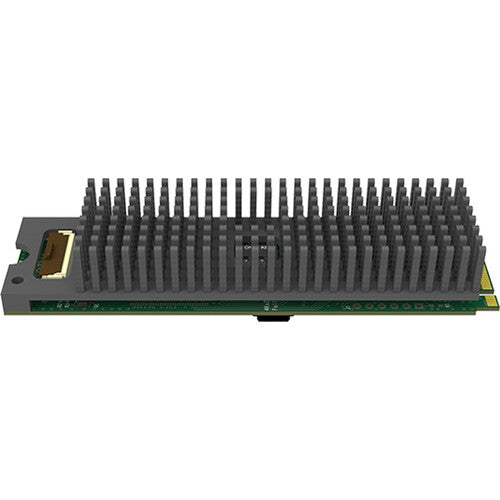

Magewell Eco Capture HDMI 4K M.2 Overview

he Eco Capture HDMI 4K M.2 Single-Channel Capture Card from Magewell allows you to connect an HDMI source to your computer and capture up to DCI 4K 4096 x 2160 resolution with embedded audio. Featuring an M.2 (PCIe 2.0) computer interface, this card provides the flexibility to be used in compact/thin tablet computers and other small form factor PCs where PCIe slots may be at a minimum. It's compatible with Windows and Linux operating systems and is capable of operating 24 hours a day, 7 days a week, while an LED indicator confirms the working state of the input the entire time (idle, input signal locked, memory failed, or FPGA configuration).

The Eco Capture HDMI 4K M.2 Card also offers many processing and other features, including resolution scaling and a high-fidelity pipeline. The card has a native FPC input connector and comes with a matching FPC to HDMI type A adapter and a ribbon cable for connecting your HDMI signal.

Key Features

FPC connector supporting included FPC to HDMI adapters and ribbon cables
Capture 4096 x 2160 DCI 4K resolution
M.2 Interface (PCIe 2.0)
Compatible with Windows and Linux
Resolution scaling
High-fidelity video processing pipeline
Image control
Various output color spaces
SG-DMA transmission mode
Multiple devices on one host
Multiple replicated capture streams
Hardware time stamp
Mounting hole
LED indicator
Firmware upgradeable
Common driver
24/7 continuous operation

HDMI Specific Features

297 MHz HDMI receiver
Adaptive HDMI equalizer
Customized EDID
Extraction of AVI/Audio/SPD/MS/VS/ACP/ISRC1/ISRC2/Gamut InfoFrames
Full colorimetry
RGB/YUV 4:4:4 8-bit and YUV 4:2:2 12-bit format signals with a pixel frequency of no more than 297 MHz
RGB/YUV 4:4:4 10/12-bit format signals with a pixel frequency of no more than 170 MHz
Up to 8-channel IEC60958/IEC61937 audio streams
Extraction of audio formation information and channel status data
Extraction of video timing information
Extraction of 3D format information
Extraction of Sony/Canon DSLR timecode
Side-by-Side Half, Top-and-Bottom, Frame Packing 3D mode

Video Capture Formats

Image resolutions up to 4096 x 2160
Frame rates up to 144 fps (actual capture frame rate can be limited by PCIe bandwidth and image resolution)
4:2:0 8-bit capture formats: NV12, I420, YV12
4:2:2 8-bit capture formats: YUY2, YUYV, UYVY
4:4:4 8-bit capture formats: V308, IYU2, V408, BGR24, BGR32
More capture formats are supported via Magewell Capture SDK for DirectKS

Video Processing Features

Video processing pipelines with 360 megapixels processing bandwidth
8-bit 4:4:4 video processing
Cropping
Scaling
Deinterlacing
Video aspect ratio conversion
Color format conversion
Auto or manual selection of input color format and quantization range
Auto or manual selection of capture color format, quantization range, and saturation range
RGB, YCbCr 601, YCbCr 709, YCbCr 2020 color formats
Limited or full quantization range
Limited, full, and extended gamut saturation range
Frame rate conversion

Video Deinterlacing

Weave
Blend top and bottom field

Color Format Conversion

Auto or manual selection of input color format and quantization range
Auto or manual selection of capture color format, quantization range, and saturation range
Support for RGB, YCbCr 601, YCbCr 709, YCbCr 2020 color formats
Support for limited or full quantization range
Support for limited, full, and extended gamut saturation range

Multiple Cards per System

Support for multiple cards plugged into one system
On-board rotary switch to set card number with 16 positions
System hardware device tree will display "01: Eco Capture HDMI 4K M.2" when the rotary switch is set to 0001, and so on
The video and audio device names displayed in your software will include the card number (set by the rotary switch)

Multiple Replicated Capture Streams

Unlimited capture streams for any one input channel, but the capture streams should be in the same capture format

Time Stamp and A/V Synchronization

Hardware-based 100ns high-resolution clock
Audio frames (192 audio samples) and video frames are stamped with hardware clock
Hardware clock can be synchronized across cards (via SDK)

Video Capture SG-DMA

1200 MB/s per channel DMA bandwidth in PCIe 2.x system
800 MB/s per channel DMA bandwidth in PCIe 1.x system
Auto-detection of Intel tiled GPU surface
DirectGMA for AMD video adapter chipsets
GPUDirect for NVIDIA video adapter chipsets

SDK

Magewell Capture SDK for DirectShow (Windows) or V4L2 (Linux) for easy integration
Magewell Capture SDK for DirectKS (Windows) or ioctl (Linux) for maximum flexibility & performance

Windows Driver Tweaks

All options can be controlled by three levels of registry key: global level, product level, and device level
Video, audio, crossbar filter names can be customized via registry keys

Magewell Eco Capture HDMI 4K M.2Specs

Inputs / Outputs

System Connection	PCIe 2.0 (M.2 2280)
Video Inputs	1x HDMI Female
Audio Inputs	No
Simultaneous Multi-Input Support	Not Specified by Manufacturer

Format Support

Input Video Format

HDMI (8-Bit 4:4:4/4:2:2/4:2:0)
DCI 4K

Standards

HDR Support

Hardware

OS Compatibility	Windows 7 or Later Windows Server 2008 Windows Server 2008 R2 Windows Server 2012 Linux 2.6.35 or Later Ubuntu 12.4 or Later CentOS 6.5 or Later
Power Consumption	Device: 3.3 VDC at 1.12 A (3.75 W)

Environmental

Operating Temperature	32 to 72°F / 0 to 40°C
Storage Temperature	-4 to 158°F / -20 to 70°C
Operating Humidity	5 to 90%

Packaging Info

Package Weight	0.23 lb
Box Dimensions (LxWxH)	6.8 x 5 x 1.1"
