Magewell Capture

Eco Capture AIO M.2 with 2K HDMI/SDI support

Eco Capture AIO M.2 with 2K HDMI/SDI support

Key Features

  • Capture UHD 2K60 via PC/Linux Computers
  • Small-Form M.2 2280/PCIe Gen2 x 2
  • Capable of 24/7 Operation
  • Auto-Detection of Input Signal Format
  • Resolution Scaling, De-Interlacing
  • Frame Rate and Color Format Conversion
  • 8-Bit 4:4:4 Color Output
  • Multiple Replicated Capture Streams
  • LED Status Indicator
  • Window and Linux Driver and SDK

Magewell Eco Capture AIO Overview

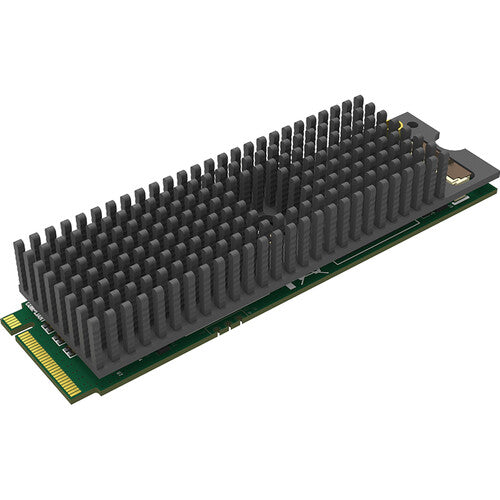

The Eco Capture AIO M.2 Single-Channel 2K Capture Card from Magewell enables you to connect an HDMI or SDI source to your computer and capture up to UHD 2K 2048 x 1080 resolution with embedded audio. Featuring an M.2 2280 Type M (PCIe Gen2 x2) computer interface, this compact card provides the flexibility to be used in small form factor PCs where PCIe slots may be at a minimum. It's compatible with Windows and Linux operating systems and can operate 24 hours a day, 7 days a week, while an LED indicator confirms the working status of the input the entire time.

Process and Capture Features

  • ~700 MB/s per channel DMA bandwidth in a PCIe 2.x system.
  • ~400 MB/s per channel DMA bandwidth in a PCIe 1.x system.
  • Video processing pipelines with ~180 Mpixels/s processing bandwidth.
  • Capture videos up to 2048 x 1080, frame rates up to 144 fps.
  • Note that actual capture frame rate can be limited by the PCIe bandwidth and internal working frequency.

HDMI and SDI Inputs

  • The HDMI and SDI inputs support up to UHD 2K60, 1080p75, and 720p120 video resolutions.
  • Supports video scaling, de-interlacing, color format conversion, and frame rate conversion.
  • Video is input with 8-bit 4:4:4 color.
  • A 100ns high-resolution clock is based on hardware implementation.
  • Hardware clock synchronization across cards is available via an SDK.

SDK and APIs

  • The MWCapture SDK provides functions including signal status extraction, capture configuration and real-time audio & video capture, and more.
  • Supports Windows DirectShow, DirectKS, Wave API, DirectSound, and WASAPI.
  • Supports Linux V4L2 and ALSA.

Recommended OS

  • Windows 7 Ultimate, 8.1 Enterprise, 10 Enterprise, Server 2008 R2 DataCenter, Server 2012 R2 DataCenter, Server 2016 R2 DataCenter (x86 & x64), and above.
  • Linux x86, x64 & ARM architecture, with 2.6.35 and above.

Compatible Software

  • VLC
  • VirtualDub
  • OBS
  • XSplit
  • vMix
  • VidBlaster
  • Wirecast
  • Microsoft Media Encoder
  • Any other DirectShow, V4L2, or AVCaptureSession based encoding or streaming software.

LED Status Indicator

  • Pulsing slowly: no valid input signal
  • On: input signal locked
  • Off: no power
  • Double blinks: memory abnormal or FPGA misconfigured
