Magewell Director

Director Mini

Director Mini

Key Features

  • Encoder, Monitor, Switcher, Recorder
  • 5.44" AMOLED Capacitive Touchscreen
  • Switch Between 2 x HDMI & 2 x USB Inputs
  • Also Switch Between 3 x Live IP Sources
  • 1 x SD Card Slot for Recording
  • RTMP, NDI|HX3, SRT Streaming Support
  • Stream 1080p60 via Ethernet or Wi-Fi
  • Input HDMI up to 4K60, H.264 Encoding
  • Bluetooth 5.0 for Audio Monitoring

Magewell Director Mini Overview

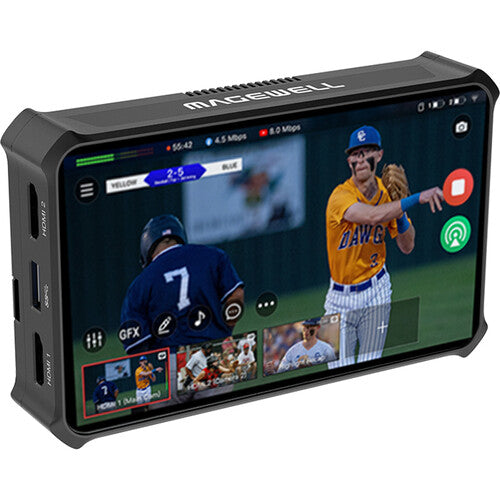

Broadcast from anywhere from a variety of sources with the Director Mini Compact Live Streaming Encoder, Switcher, Monitor & Recorder from Magewell. This compact device features a bright 5.44" AMOLED capacitive touchscreen display that provides switching, monitoring, encoding, recording, and streaming directly to the internet. Add up to two HDMI, two USB-A, two NDI|HX2 or HX3, three SRT/RTMP, smartphone, or media file source inputs, and simultaneously output via Wi-Fi or Ethernet to up to two destinations such as YouTube, Twitch, or Facebook Live using SRT, RTMP, or NDI|HX3. The Director Mini is also configurable in portrait or landscape mode for compatibility with social media sites such as TikTok or Instagram.

Compact and Versatile

Combining multi-input switching, graphics, streaming, recording, and monitoring in one compact device, Director Mini enables a single operator to easily create visually compelling productions for live event coverage, remote production feeds, and more.

Flexible Layouts and Powerful Production Tools

Director Mini's intuitive user interface is accessed through its integrated AMOLED touchscreen. Users can define multiple scenes that combine live video and audio inputs with network streams, media sources, and graphics, then switch or transition between these scenes on the fly. Production tools, including chroma keying, graphics, and telestration further enhance your content.

High-Quality Streaming and Recording

Director Mini can encode video up to 1080p60 and bitrates up to 30 Mb/s. Productions can be streamed via RTMP to popular platforms such as YouTube Live, Facebook Live, or custom destinations. SRT output supports high-quality remote production workflows, while NDI|HX3 output is ideal for local IP-based production. Content can also be recorded to an SD card, USB flash drive, or the device's internal 64GB storage.

Other Features

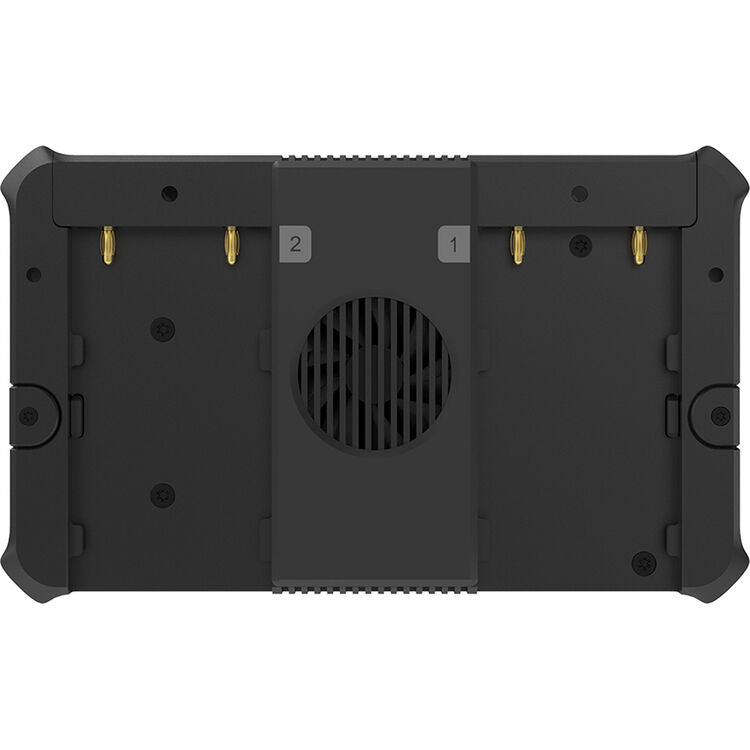

  • Optional L-series batteries for DC power
  • Intuitive user interface and companion app for scene editing and creating shows
  • Rich output possibilities, including RTMP and SRT streams, NDI|HX3, and local displays
  • Display multiple graphics, including titles, lower thirds, a scoreboard, timer, stopwatch and more
  • Ethernet and Wi-Fi streaming, Bluetooth for audio monitoring
  • Control with Director Utility App for Android and iOS

Magewell Director MiniSpecs

Key Specs

IP Video
H.264:
1920 x 1080 at 60p Encoding
IP Audio
MP3: Encoding
Simultaneous Streams
2 Streams
Video I/O
2x HDMI (HDMI 1.4) Input
2x USB-A (USB Video) Input
1x USB-C Output
Embedded Audio
HDMI/LAN (RJ45)/NDI/USB
Recording Media
1x SD (Unspecified Type)
Internal Storage
64 GB
Recording Modes
1920 x 1080p up to 60 fps
Display
OLED

IP Encoding/Decoding

IP Video
H.264:
1920 x 1080 at 60p Encoding
IP Audio
MP3: Encoding
Transport Protocols
NDI/HX3, RTMP, SRT
Simultaneous Streams
2 Streams
Compatible Services
Facebook Live, Twitch, YouTube Live

Wireless

Wireless
Wi-Fi 5 (802.11ac) / Bluetooth 5.0
*Built-In
Wi-Fi
Wi-Fi 5 (802.11ac); Dual-Band (2.4 & 5 GHz)
Bluetooth
5.0
Cellular Support
No

Interfaces

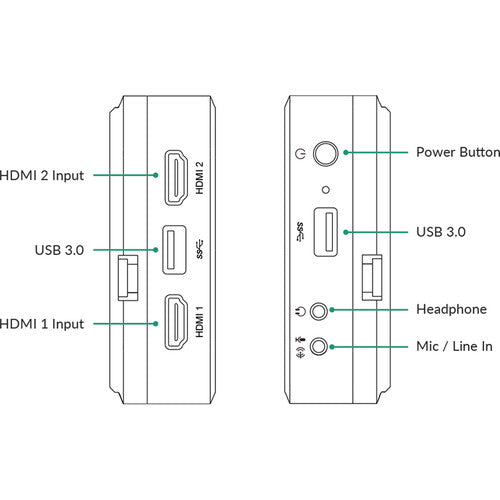

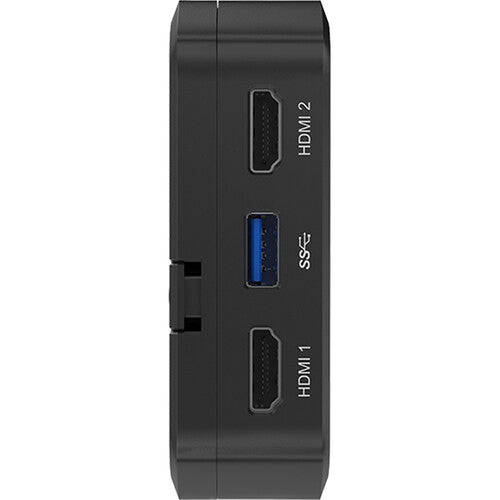

Video I/O
2x HDMI (HDMI 1.4) Input
2x USB-A (USB Video) Input
1x USB-C Output

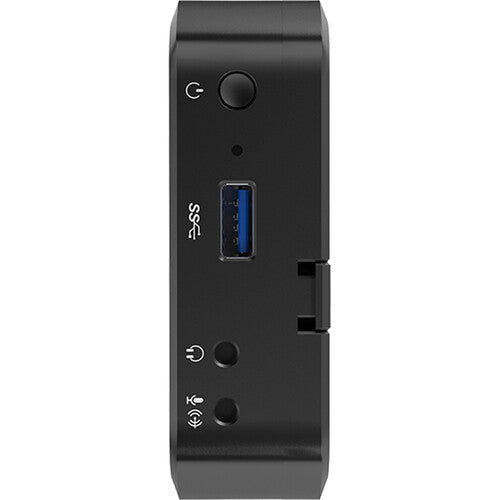

Audio I/O
1x 1/8" / 3.5 mm TRS Stereo Analog Input
1x 1/8" / 3.5 mm TRRS Headphone/Microphone Stereo Analog Output

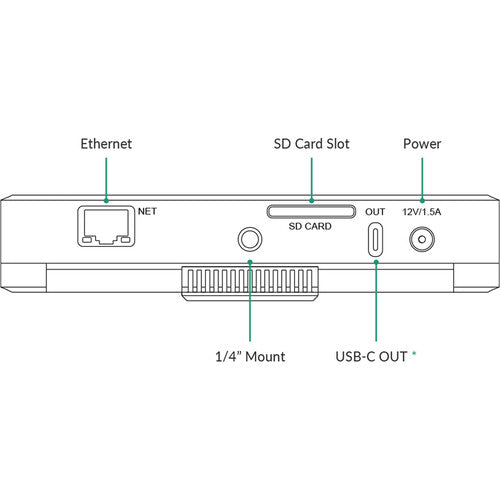

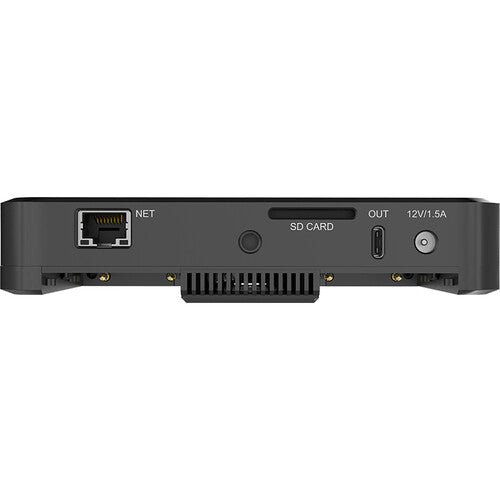

Other I/O
1x RJ45 Gigabit Ethernet (NDI) Input/Output
Embedded Audio
HDMI/LAN (RJ45)/NDI/USB

Internal Recording

Recording Media
1x SD (Unspecified Type)
Internal Storage
64 GB
Recording Modes
1920 x 1080p up to 60 fps

Power

Power I/O
1x Barrel (12 VDC at 1.5 A) Input

General

Operating Conditions
14 to 122°F / -10 to 50°C at 5 to 90% Humidity
Storage Conditions
-4 to 158°F / -20 to 70°C at 5 to 90% Humidity
Display
OLED
Dimensions
5.8 x 3.5 x 1.1" / 147.2 x 90 x 28.5 mm

Packaging Info

Package Weight
2.41 lb
Box Dimensions (LxWxH)
7.8 x 7.1 x 4.6"
