Lumens DC

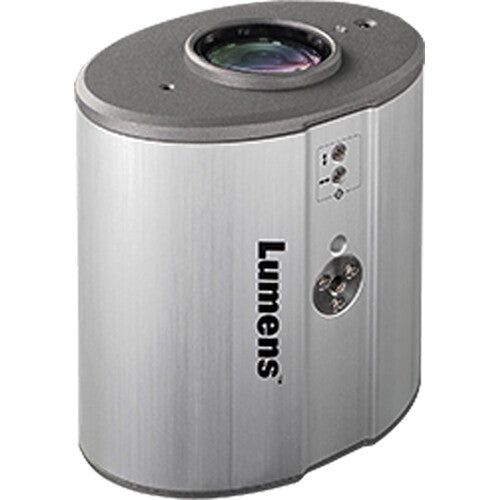

CL-511 4K Ceiling Mount Document Camera

Key Features

Compact 4K Camera for Meetings/Classes
Video Output via VGA, HDMI, USB & IP
Capture up to UHD 4K30 Video
H.264 Recording via USB-A up to 1080p60
60x Optical Zoom, 300x Total Zoom
1/2.8" 8.6MP CMOS Sensor
Internal Flash Captures up to 100 Stills
PoE+ Single-Cable Power Support
IP, USB/UVC, and RS-232 Control Support
Kensington Lock Port

Lumens CL511 4K Ceiling Camera Overview

The CL511 4K Recording/Streaming Ceiling Camera from Lumens is a professional-level 4K ceiling camera with a 1/2.8" 8.6MP CMOS sensor that produces crystal clear pictures for meetings, classrooms, and demonstrations. The camera can easily mount on a ceiling, wall, or mount to reach any angle of your room with its 300x total zoom, and it can also be used as a document camera with its wide angle of view. The camera outputs up to UHD 4K video via its Ethernet, HDMI, USB-B, and VGA interfaces, and it can also record 1080p video into MP4 format via USB and store up to 100 still JPG images on internal flash. The camera can be controlled via USB/UVC, RS-232, or IP from remote applications.

Sharp 4K UHD Overhead Video

Lumens CL511 can be suspended from, or embedded into the ceiling. It provides presenters an unobstructed top view of a table top, podium, or demonstration area.

The camera can shoot documents or objects larger than A0 size (over 88 x 48") at up to 4K resolution.

Accurate Positioning

The CL511 can project mark the middle of the shooting area with a targeting laser, making it quick and easy to position objects accurately in the center of the frame.

With 300x close-up capabilities, the camera is ready to capture the finest details.

Step-Up Onboard Collaboration

The CL511 supports a wireless mouse to access onboard collaboration tools for spotlighting aparticular area. It also enables free drawing without a PC or any software.

The addition of Lumens Ladibug program gives users access to advanced features such as text overlay, 4K recording, and use with a touch panel.

Fast and Easy Installation

Featuring HDMI, USB, VGA, and Ethernet video outputs, users can output to video conferencing platforms, projectors and large format displays, and devices connected to the local network.The CL511 also supports Power over Ethernet (PoE+).

Using a standard network cable, the visualizer can be operated without additional power supplies. These features significantly reduce installation time and costs.

Lumens CL511 4K Ceiling CameraSpecs

Key Specs

Sensor	1/2.8" CMOS
Sensor Resolution	Effective: 8.6 Megapixel (3840 x 2160)
Zoom	60x (Optical) 15x (Digital)
Capture Area	88 x 48" / 223.5 x 121.9 cm 5.4 x 3" / 13.6 x 7.6 cm
Video I/O	1x HDMI Output 1x HD15 VGA Output
Media Card Slots	Yes

Sensor

Sensor	1/2.8" CMOS
Sensor Resolution	Effective: 8.6 Megapixel (3840 x 2160)
Zoom	60x (Optical) 15x (Digital)
Frame Rate	3840 x 2160 @ 30 fps 3840 x 2160 @ 25 fps 1920 x 1080 @ 60 fps 1920 x 1080 @ 30 fps 1280 x 720 @ 60 fps 1280 x 720 @ 50 fps 1024 x 768 @ 60 fps
Effective Pixels	3840 x 2160 (4:3)
Output Resolution	3840 x 2160 1920 x 1080 1280 x 720 1024 x 768

General

Capture Area	88 x 48" / 223.5 x 121.9 cm 5.4 x 3" / 13.6 x 7.6 cm

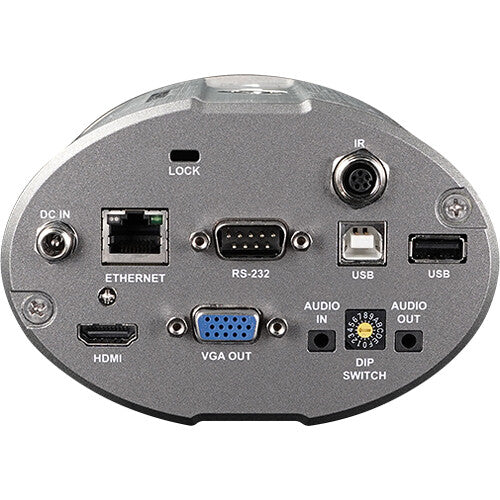

Video I/O	1x HDMI Output 1x HD15 VGA Output
Audio I/O	1x 1/8" / 3.5 mm Line Input 1x 1/8" / 3.5 mm Line, Headphone Output
Other I/O	1x USB-B 2.0 1x USB-A 2.0 1x DE-9/DB-9 RS232 1x RJ45
Media Card Slots	Yes
Image Storage	100 Images

Adjustments

Image Rotation

0°, 90°, 180°, 270°

Convenience

Built-In LED Lighting	No
Built-In Mic	No
Focus Modes	Auto
Exposure Modes	Auto
Image Capture Modes	Single, Continuous
Multi-Input Support (PIP/PBP)	No
OS Compatibility	Windows 7 or Later / macOS / Chrome OS
OS Compatibility	Windows 7 to 10 macOS 10 or Later Chrome OS

Electrical

Power Source	PoE+, Power Adapter
Power Consumption	12 W
Input Power	100 to 240 VAC, 50 / 60 Hz

Physical

Certifications	No
Kensington Lock Slot	Yes
Dimensions	5.6 x 5.0 x 3.4" / 142.0 x 126.0 x 86.0 mm
Weight	1.8 lb / 800 g
